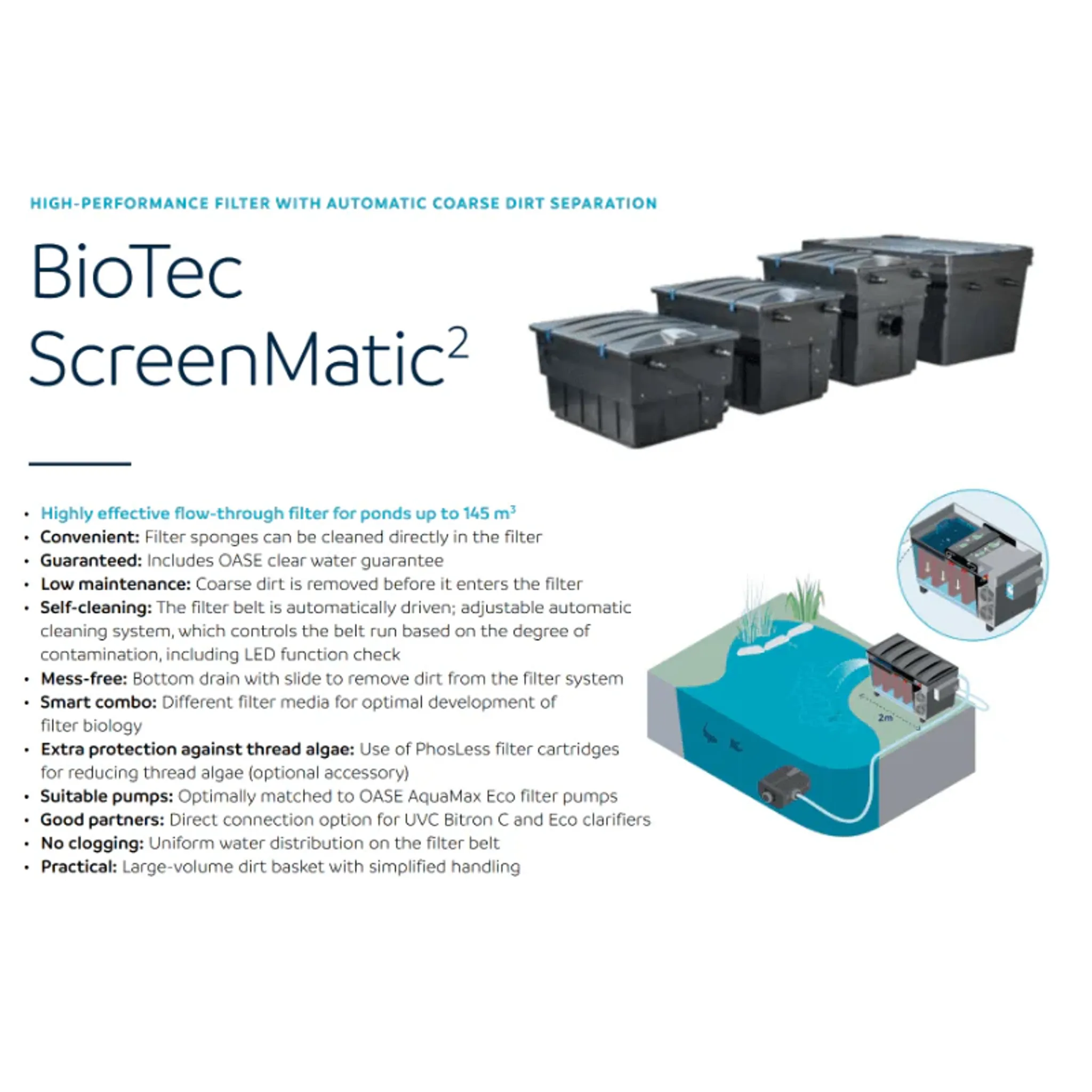

OASE BioTec ScreenMatic² Set 40000 - High-Performance, Low Effort Pond Filter 10000L

Key Features,

• First class and powerful individual products, perfectly matched

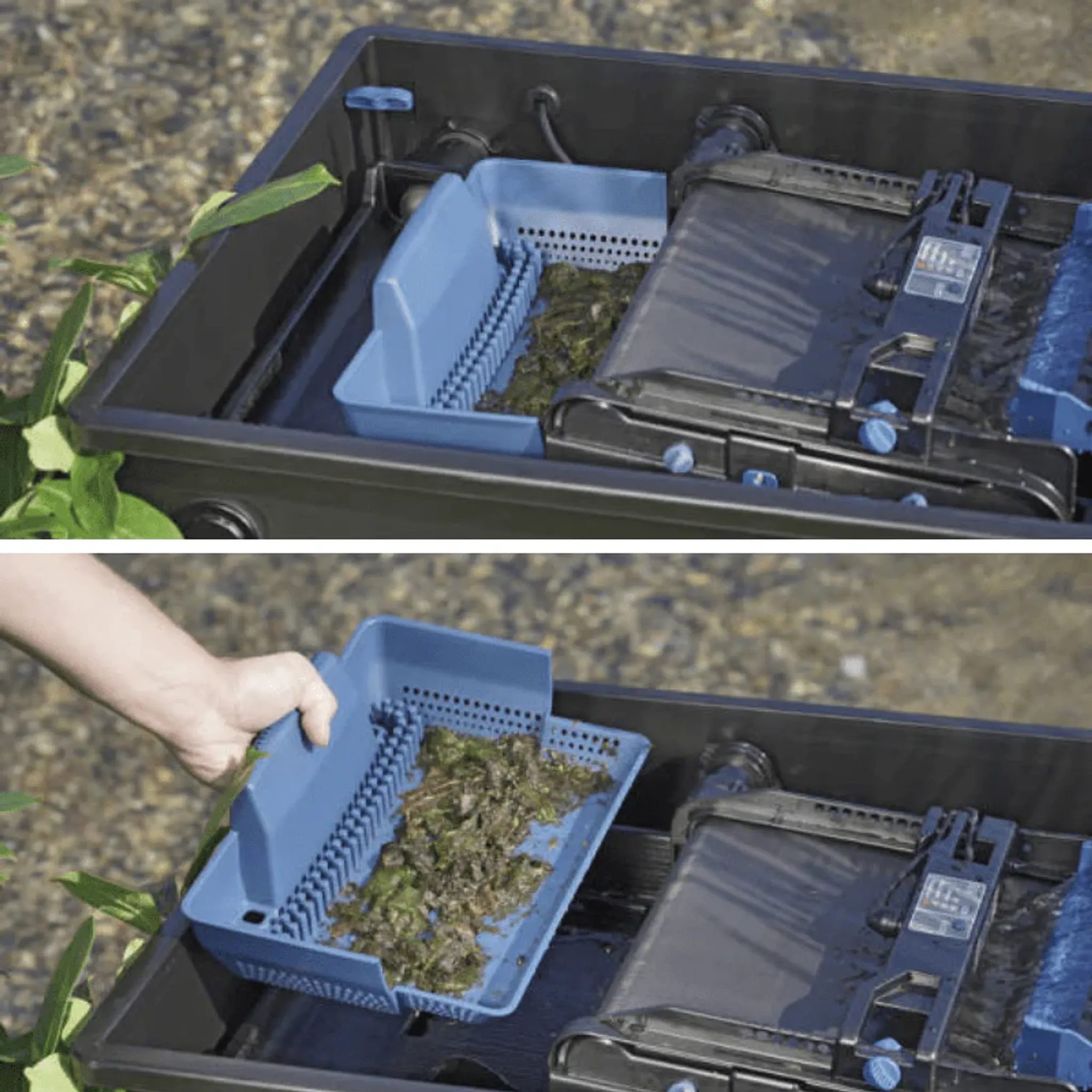

• Coarse debris extractor protects the filter sponges and extends the service life of the filter
• Settlement surface for micro-organisms for decomposition of pollutants and nutrients
• Clear and healthy pond water with minimum maintenance requirements
• Particularly long service life thanks to automatic coarse debris extraction before it enters into the filter
• Continuous belt filter at an affordable price

Characteristic,

• Combination of mechanical biological cleaning and effective UVC technology
• Incl. OASE Clear Water Guarantee
• Fast and easy set up
• Filter technology simply selected and ready for connection
• Incl. BioKick Filter Starter for initial settlement of microorganisms
• Complete set includes: Flow through filter BioTec ScreenMatic² with Bitron C self-cleaning UVC clarifier and AquaMax Eco Premium energy efficient filter pump

TECHNICAL DATA,
Dimensions filter (L x W x H) mm : 788 x 590 x 445
Net weight kg : 29.90
Rated voltage UVC : 220 - 240 V / 50 - 60 Hz
Power consumption W : 5
Power consumption UVC W : 36
Power cable length UVC m : 5.00
Guarantee Years : 2
Guarantee UVC Years : 2
Number of filter foams, total Units : 8
Number of blue filter foams Units : 2
Number of red filter foams Units : 3
Number of purple filter foams Units : 3
Special filter granulate kg : 2.50
Temperature display : No
Coarse debris extraction µm : 300
Connection inlet filter mm : 25 / 32 / 38
Connection inlet UVC mm : 19 / 25 / 32 / 38 / 50
Connections, outlet filter DN : 75
Sludge discharge connections DN : 50

Dimensions pump (L x W x H) – mm : 340 x 280 x 165
Rated voltage Pump : 220 - 240 V / 50 - 60 Hz
Power consumption pump W : 110
Max. flow rate l/h : 9000
Guarantee pump Years : 3
Power cable length pump m : 10.00
Suitable for ponds up to max. m3 : 40.0
Suitable for ponds with fish stock m3 : 20.0
Suitable for ponds with koi m3 : 10.0
