OASE Aquarius Fountain Set Eco (4500/6500/9500/13500/16500)

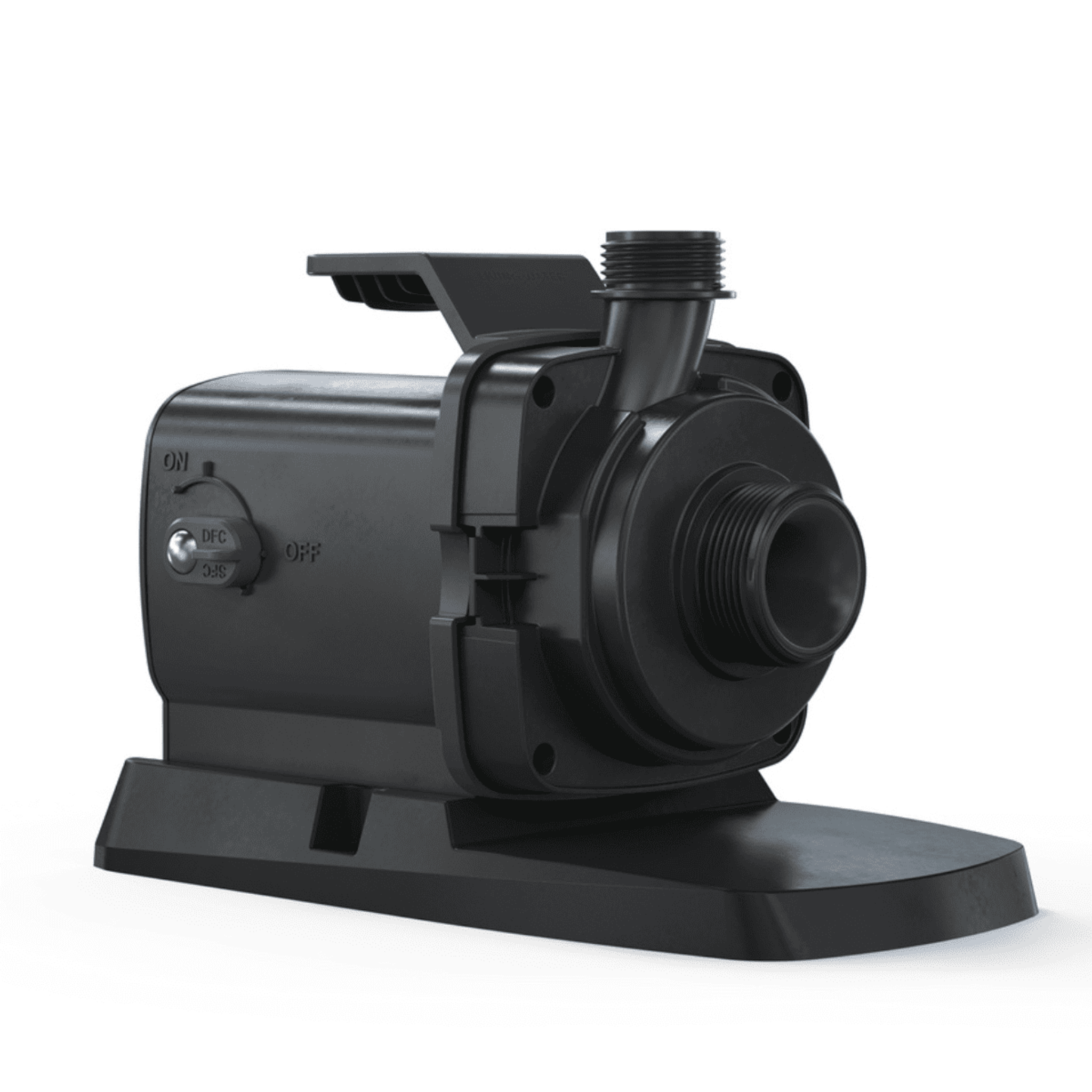

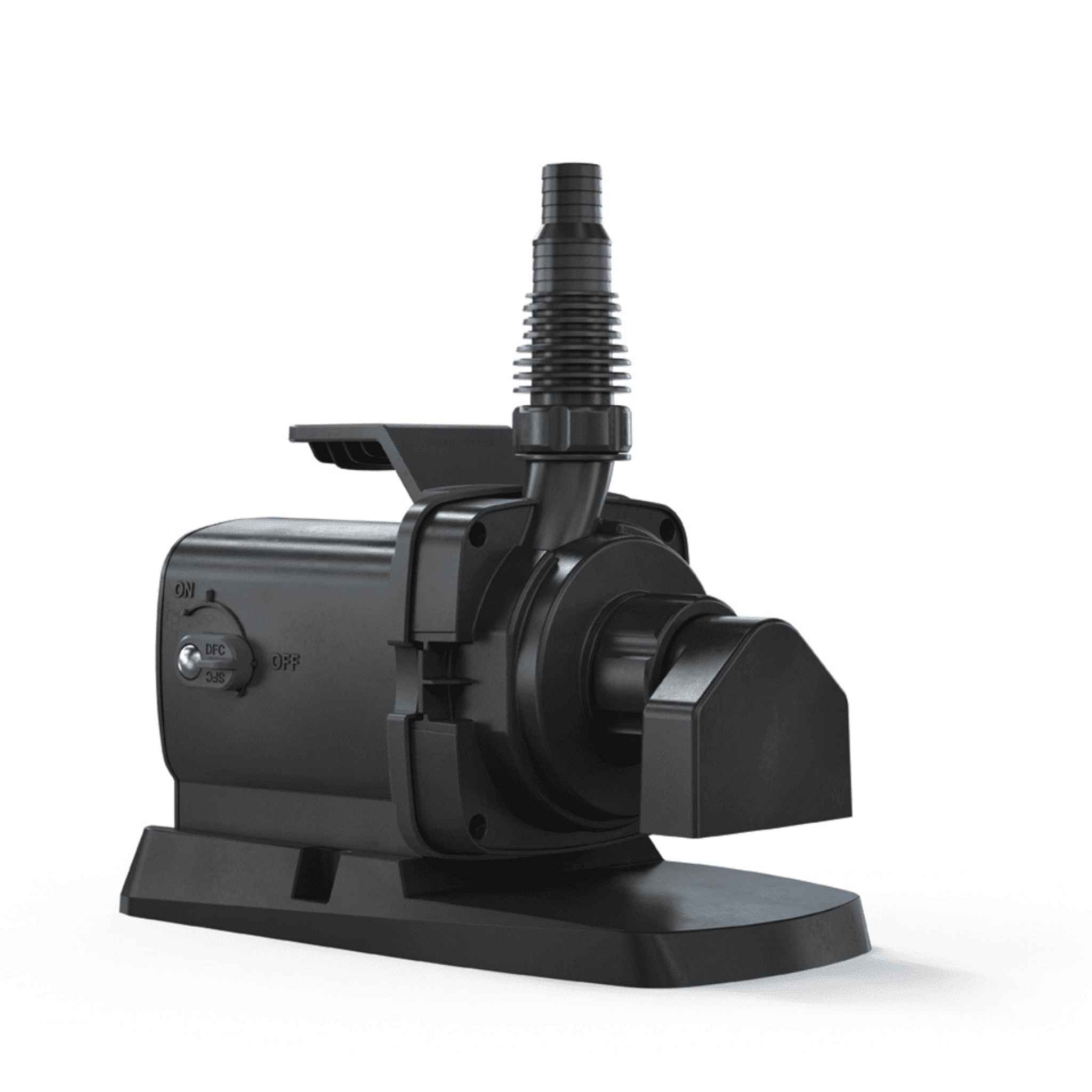

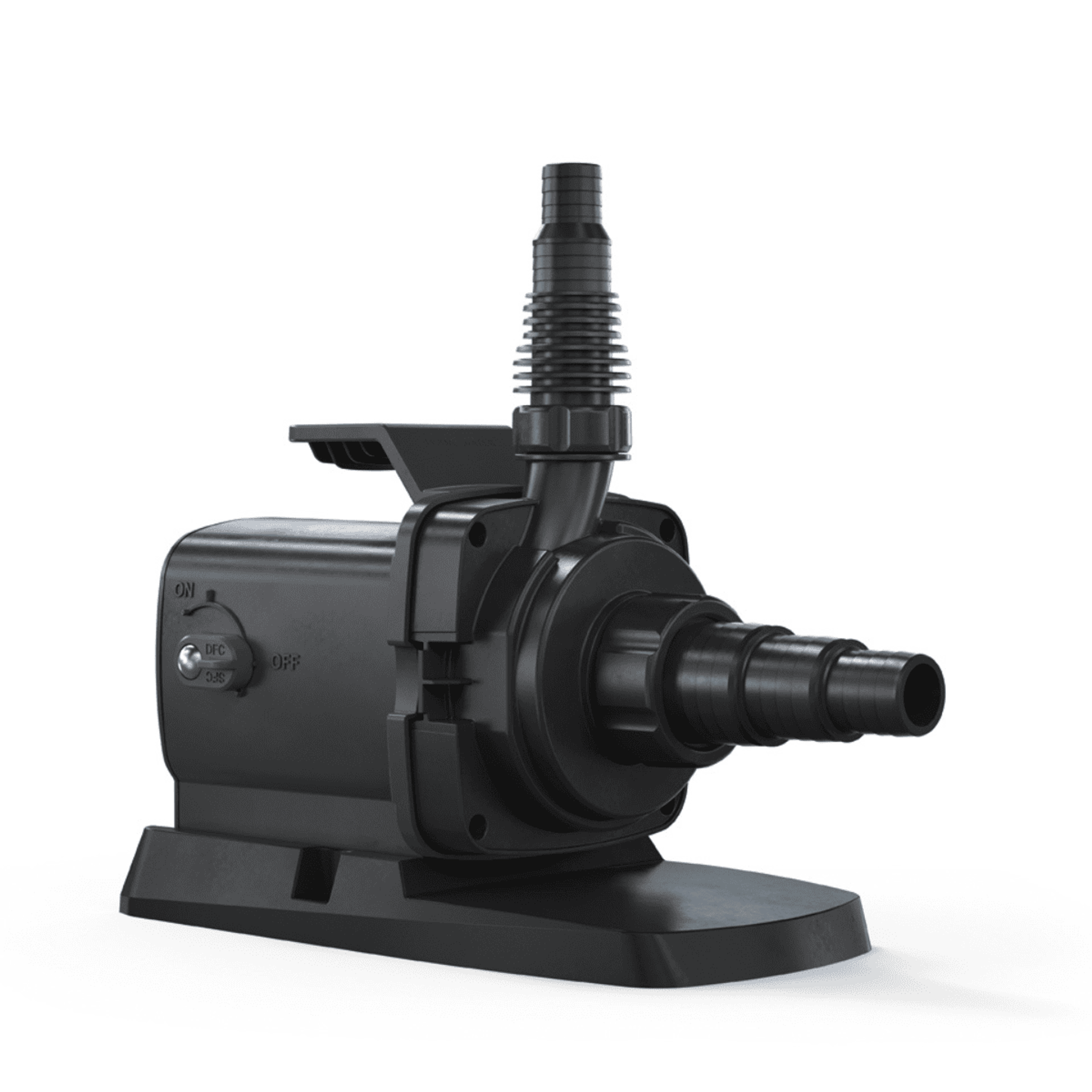

OASE Aquarius Fountain Set Eco 4500 - Premium Energy-Efficient Fountain Pump Set

Transform your pond or water feature into a stunning focal point with the OASE Aquarius Fountain Set Eco Series. Engineered in Germany, this high-performance fountain pump systems combine powerful water displays, intelligent control technology, and exceptional energy efficiency to create beautiful and dynamic fountain features for both residential and commercial landscapes, while maintaining an exceptional energy efficiency.

Available in multiple models ranging from 4500 to 16500, this Aquarius Fountain Set Eco Series offers a solution for ponds and water features of every size. This series operates quietly and can reduce energy consumption by up to 46% compared to previous generations and iterations, largely due to its newly improved technology - the advanced CORE 6 motor technology.

Key characteristics include:

• Available in mutiple high-performance flow rates from 4,500 L/h up to 16,500 L/h for fountain displays and water movement
• OASE Control Technology that allows monitoring and control of pump remotely through the OASE Control mobile app
• Energy-efficient Eco technology that helps you reduce operational costs without sacrificing performance (up to 46%)
• Multiple fountain patterns with interchangeable nozzles for customized water displays
• Adjustable fountain height and flow control to suit different pond sizes and feature designs
• Integrated secondary outlet allows you to run an additional watercourse, or spout simultaneously
• Dry-run and blockage protection safeguards the pump from damage and extends its service life
• Advanced CORE 6 motor technology for quiet operation
• Frost-resistant construction materials for higher reliability during winter, cooler seasons (up to -20 degrees Celsius)
• 3 years warranty that guarantees quality production



OASE Control Technology

Smart App-Based Pump Control

With the OASE Control compatibility function, it allows for the OASE Aquarius Eco Premium 4500 pump to be connected to the smart ecosystem. Once connected, you can monitor and control the pump remotely through the OASE Control mobile app.

Remote Flow Adjustment

Instead of manually adjusting valves or flow controls at the pond, you can electronically control the pump output from the comfort of your smartphone, providing you with greater convenience and energy optimisation.

System Monitoring & Diagnostics

The OASE Control platform allows you to monitor the pump status and operating conditions in real time, helping you to identify issues early for maintenance planning.

Dynamic Fountain Programming

The pump features Dynamic Function Control, which creates changing water patterns and varying heights of the fountain for a more natural and visually appealing display. Through the smart control app, users can access and toggle multiple fountain scenes and dynamic water effects.

Smart Garden Integration

Multiple compatible devices, including pumps, filters, lighting systems, and water features can all be managed through a single app interface using the OASE Control network.



What makes the Aquarius Fountain Set Eco Series Different?

• Multiple interchangeable fountain patterns
• Energy-efficient Eco technology
• Powers both fountain and secondary water feature from a single pump
• Dry-run, blockage, and thermal protection
• Adjustable and customisable flow and fountain effects such as height for a more dynamic water display
• German-engineered premium build quality for exceptional durability
• Advanced Dynamic Flow Control capability on compatible Eco models for more natural water movement



Ideal For:

• Garden ponds
• Decorative fountains
• Fountain stones
• Commercial and residential landscape installations



Available Models:

• Aquarius Fountain Set Eco 4500
• Aquarius Fountain Set Eco 6500
• Aquarius Fountain Set Eco 9500
• Aquarius Fountain Set Eco 13500
• Aquarius Fountain Set Eco 16500



Technical Specifications

Aquarius Fountain Set Eco 4500

• Maximum flow rate: 4,500 l/h
• Maximum flow rate: 75 l/min
• Maximum head height: 3.4–3.5 m
• Power consumption: up to 35 W
• Rated voltage: 220–240 V AC
• Cable Length: 10 m
• Net Weight: 5.23kg
• Dimensions (L × W × H): 290 × 130 × 175 mm
• Hose Connections: 19 mm, 25 mm, 32 mm, 38 mm
• Outlet Connection: G 1" (1" BSP Male)
• Inlet Connection: G 1½"
• Installation Type: Submersible or Dry Installation
• Control Compatibility: OASE Control & Eco Control Compatible
• Dynamic Function Control (DFC): Yes
• Environmental Function Control (EFC): Yes
• Dry-Run Protection: Yes
• Blockage Protection: Yes
• Frost Resistance: Up to -20°C
• Filter Intake Surface: 440 cm²
• Warranty: 3 Years
• Country of Manufacture: Germany

Aquarius Fountain Set Eco 6500

• Maximum flow rate: 6,500 L/h
• Maximum flow rate: 108 L/min
• Maximum head height: 4.0
• Power consumption: 15-55
• Rated voltage: 220–240 V / 50–60 Hz
• Cable Length: 10 m
• Net Weight: 5.40kg
• Dimensions (L × W × H): 290 × 130 × 175 mm
• Hose Connections: 19, 25, 32, 38 mm
• Outlet Connection: G 1"
• Inlet Connection: G 1½"
• Installation Type: Submersible or Dry Installation
• Control Compatibility: OASE Control & Eco Control Compatible
• Dynamic Function Control (DFC): Yes
• Environmental Function Control (EFC): Yes
• Dry-Run Protection: Yes
• Blockage Protection: Yes
• Frost Resistance: Up to -20°C
• Filter Intake Surface: 440 cm²
• Warranty: 3 Years
• Country of Manufacture: Germany


Aquarius Fountain Set Eco 9500

• Maximum flow rate: 9,500 L/h
• Maximum flow rate: 158 L/min
• Maximum head height: 5.0
• Power consumption: 20-85
• Rated voltage: 220–240 V / 50–60 Hz
• Cable Length: 10 m
• Net Weight: 5.90kg
• Dimensions (L × W × H): 340 × 280 × 160 mm
• Hose Connections: 25, 32, 38 mm
• Outlet Connection: G 1½"
• Inlet Connection: G 1½"
• Installation Type: Submersible or Dry Installation
• Control Compatibility: OASE Control & Eco Control Compatible
• Dynamic Function Control (DFC): Yes
• Environmental Function Control (EFC): Yes
• Dry-Run Protection: Yes
• Blockage Protection: Yes
• Frost Resistance: Up to -20°C
• Filter Intake Surface: 640 cm²
• Warranty: 3 Years
• Country of Manufacture: Germany

Aquarius Fountain Set Eco 13500

• Maximum flow rate: 13,500 L/h
• Maximum flow rate: 225 L/min
• Maximum head height: 6.0
• Power consumption: 35-120
• Rated voltage: 220–240 V / 50–60 Hz
• Cable Length: 10 m
• Net Weight: 6.10kg
• Dimensions (L × W × H): 340 × 280 × 160 mm
• Hose Connections: 25, 32, 38 mm
• Outlet Connection: G 1½"
• Inlet Connection: G 1½"
• Installation Type: Submersible or Dry Installation
• Control Compatibility: OASE Control & Eco Control Compatible
• Dynamic Function Control (DFC): Yes
• Environmental Function Control (EFC): Yes
• Dry-Run Protection: Yes
• Blockage Protection: Yes
• Frost Resistance: Up to -20°C
• Filter Intake Surface: 640 cm²
• Warranty: 3 Years
• Country of Manufacture: Germany

Aquarius Fountain Set Eco 16500

• Maximum flow rate: 16,500 L/h
• Maximum flow rate: 275 L/min
• Maximum head height: 7.5
• Power consumption: 45-145
• Rated voltage: 220–240 V / 50–60 Hz
• Cable Length: 10 m
• Net Weight: 6.30kg
• Dimensions (L × W × H): 340 × 280 × 160 mm
• Hose Connections: 25, 32, 38 mm
• Outlet Connection: G 1½"
• Inlet Connection: G 1½"
• Installation Type: Submersible or Dry Installation
• Control Compatibility: OASE Control & Eco Control Compatible
• Dynamic Function Control (DFC): Yes
• Environmental Function Control (EFC): Yes
• Dry-Run Protection: Yes
• Blockage Protection: Yes
• Frost Resistance: Up to -20°C
• Filter Intake Surface: 640 cm²
• Warranty: 3 Years
• Country of Manufacture: Germany

Items Included:

• Aquarius Eco Premium Fountain Pump
• Adjustable Fountain Assembly
• Fountain Nozzles
• Telescopic Extension
• 2-Way Distributor with Flow Control
• Hose Adapters
• Power Cable
• User Manual
