Oase AquaMax Dry 6000-14000 (use in dry filter chamber)

Oase AquaMax Dry 6000-14000

First-class pumping capacity and flexible installation options in dry conditions! It is ideal for use below the water level in an external pump chamber – even on swimming and bathing ponds. Due to its solid base, it stands particularly firmly. The filter and watercourse pump pumps the pond water with dirt particles up to 8 mm in size to the filter system. It works extremely quietly and is electronically adjustable.

All Aquamax Dry pumps should be mounted in a flooded suction configuration (in that the pump can be mounted on dry land but must be positioned below the pond water line, to constantly flood the pump inlet with water via gravity). This is to prevent the pump to run dry and cause overheating.

Features:

• Quiet pump, especially for dry setup
• Extremely stable thanks to its solid base
• Electronically adjustable with the OASE InScenio FM-Master 3

Characteristic:

• HIGH-PERFORMANCE: Filter pump designed for installation in a dry, separate pump vault

• EXCEPTIONALLY QUIET: Extremely quiet motor

• STABLE: Thanks to the solid stand

• INCLUDED: Two hose connections and two stainless steel hose clips are included

• SWIMMING AND NATURAL POOLS: Possible to use in an external pump vault

• CONTROL SYSTEM: Can be electronically controlled with the OASE InScenio FM-Master 3 garden socket

Technical Data:

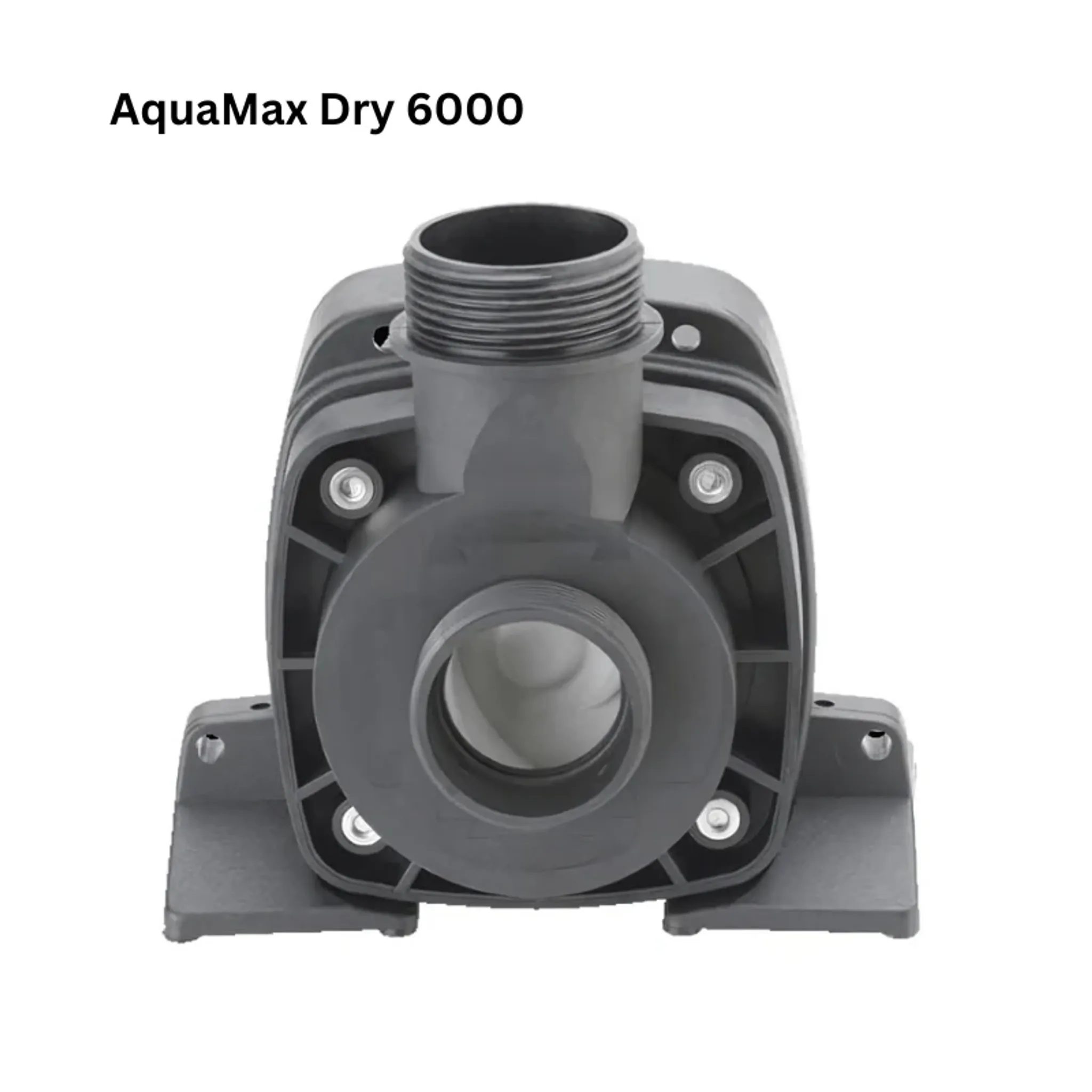

AquaMax Dry 6000

Max Flow Rate (litres per minute)    100
Max Discharge Head (metres)    2.2
Max Suction Lift (metres, if appropriate)    0
Discharge connection    1 1/2" BSPM
Recommended discharge hose (int Ø, inch/mm)    1 1/2" / 38mm
Suction connection    1 1/2" BSPM
Recommended suction hose (Int. Ø, inch/mm)    1 1/2" / 38mm
Solids handling capacity (mm Ø)    8mm
Voltage/Hz    220-240V / 50Hz
Power consumption watts : 75w
Cable length (metres) : 10m
Dimensions: 200 x 150 x 150mm
Weight: 3.1kg
Guarantee: 3 years

AquaMax Dry 8000

Dimensions (L x W x H): 200 x 150 x 150mm
Rated voltage : 220 - 240 V / 50 Hz
Power consumption : 100w
Power cable length : 10.00m
Net weight : 3.20kg
Guarantee:  3 years
Max. flow rate    l/min    125
Max. flow rate    l/h    7500
Max. head height, metres : 3.00m
Pressure-side connection        G 1 ½
Suction-side connection        G 1 ½
Hose connection    mm    25 / 32 / 38
Hose connection        1", 1 ¼", 1 ½"
Max. coarse debris displacement  :  8mm
Electronic adjustment : Yes
Setup type:  For dry installation only

AquaMax Dry 14000

Dimensions (L x W x H) : 210 x 150 x 170mm
Rated voltage: 220 - 240 V / 50 Hz
Power consumption : 230w
Power cable length : 10.00m
Net weight : 5.00kg
Guarantee : 3 years
Max. flow rate : 225l/min
Max. flow rate : 13500 1/h
Max. head height, metres: 5.00m
Pressure-side connection        G 1 ½
Suction-side connection        G 1 ½
Hose connection    mm    25 / 32 / 38
Hose connection        1", 1 ¼", 1 ½"
Max. coarse debris displacement    mm    8mm
Electronic adjustment :  Yes
Setup type: For dry installation only
