OASE Vitronic UV Clarifier filter (18W/36W/55W)

UV Clarifier, Pond UV filtration, Aquarium UV filtration, UV filter for aquarium or pond. Clears water and eliminate algae long term

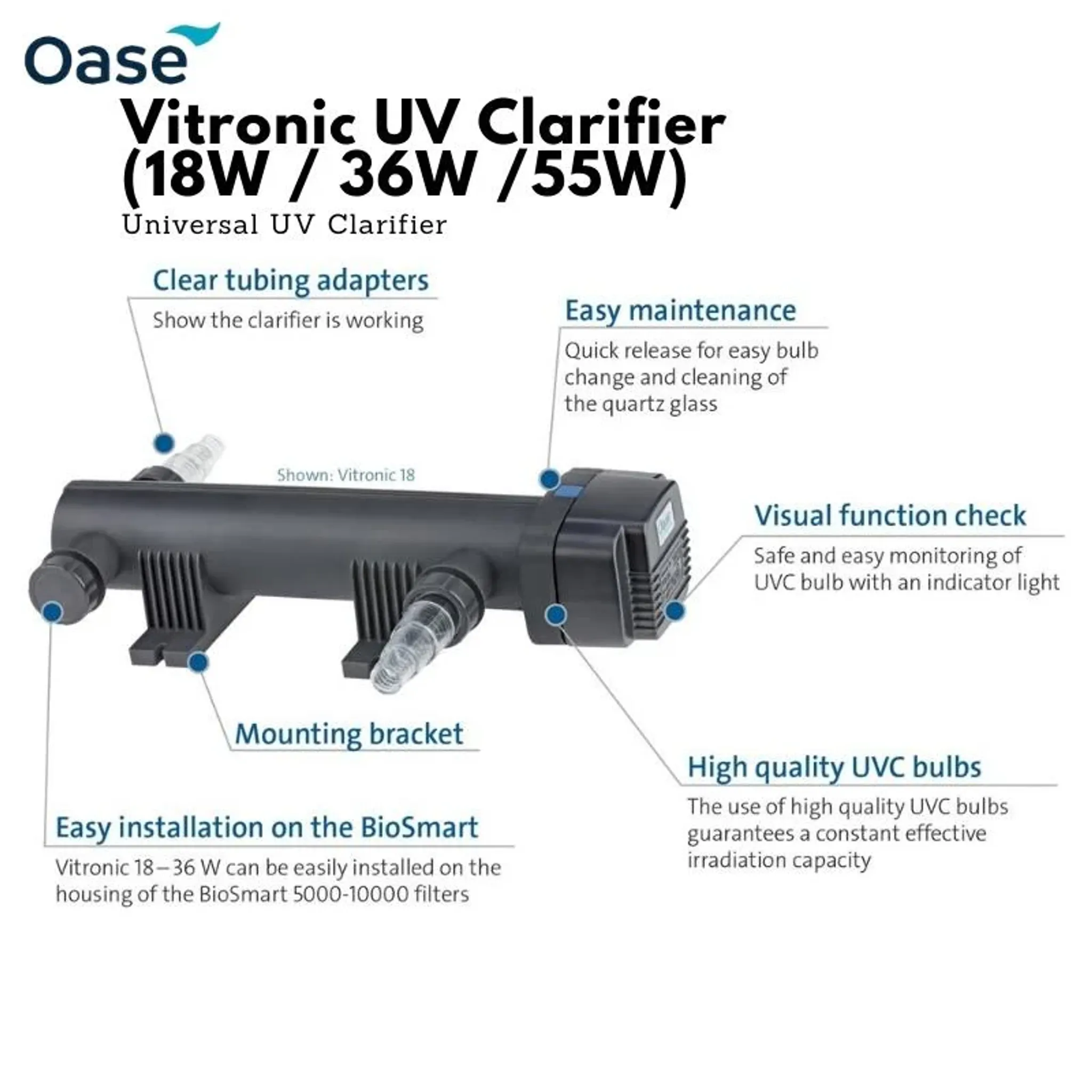

• Vitronic 18-36W are designed to operate with all filter systems, although best suited for the BioSmart 5000-10000 filters.
• Easily integrated into an existing or new pond system, Vitronic UV Clarifiers clean the green out of water.
• High quality UVC bulbs guarantee a long service life, and a constant effective irradiation capacity.
• Safely confirm that the UVC is working with clear tubing adaptors and the visual inspection window at the top of the filter.
• Quick release provides easy UV unit opening and closing for easy bulb change and cleaning of the quartz glass.
• UVC bulbs should be changed at regular intervals, ideally in spring before the season starts, to guarantee the full capacity of the UVC output.
• When properly sized, paired, and registered online, this product qualifies for the Clear Water Guarantee.



Technical data (18W)

Dimensions (L x W x H)               mm          529 x 186 x 130
Rated voltage                            220 - 240 V / 50/60 Hz
Power consumption  W             18
Power cable length    m             5.00
Net weight kg             2.12
Guarantee Years        2
UVC power               W             18
Temperature display                  No\
UVC operating hours meter                        No
Function check                          Visual
Number of inlets        Units        1
Inlet connections      mm          25 / 32 / 38
Number of outlets     Units        2
Connections, outlet   mm          25 / 32 / 38
Max. flow rate           l/h            3500
Max. operating pressure            bar           0.6
Suitable for ponds up to max.     m³            20.0
Suitable for ponds with fish stock m³            10.0
Suitable for ponds with koi         m³            5.0
Connection to                           BioSmart 18000/36000, BioTec ScreenMatic² 40 – 60000



Technical data (36W)

Dimensions (L x W x H)               mm          529 x 186 x 130
Rated voltage                            220 - 240 V / 50/60 Hz
Power consumption  W             36
Power cable length    m             5.00
Net weight kg             2.28
Guarantee Years        2
UVC power               W             36
Temperature display                  No
UVC operating hours meter                        No
Function check                          Visual
Number of inlets        Units        1
Inlet connections      mm          25 / 32 / 38
Number of outlets     Units        2
Connections, outlet   mm          25 / 32 / 38
Max. flow rate           l/h            6000
Max. operating pressure            bar           0.6
Suitable for ponds up to max.     m³            40.0
Suitable for ponds with fish stock m³            20.0
Suitable for ponds with koi         m³            10.0
Connection to                           BioSmart 18000/36000, BioTec ScreenMatic² 40 - 60000



Technical data (55W)

Dimensions (L x W x H)               mm          660 x 155 x 130
Rated voltage                            220 - 240 V / 50/60 Hz
Power consumption  W             55
Power cable length    m             5.00
Net weight kg             2.30
Guarantee Years        2
UVC power               W             55
Temperature display                  No
UVC operating hours meter                        No
Function check                          Visual
Number of inlets        Units        2
Inlet connections      mm          25 / 32 / 38
Number of outlets     Units        1
Connections, outlet   mm          25 / 32 / 38
Max. flow rate           l/h            8500
Max. operating pressure            bar           0.6
Suitable for ponds up to max.     m³            60.0
Suitable for ponds with fish stock m³            30.0
Suitable for ponds with koi         m³            15.0
