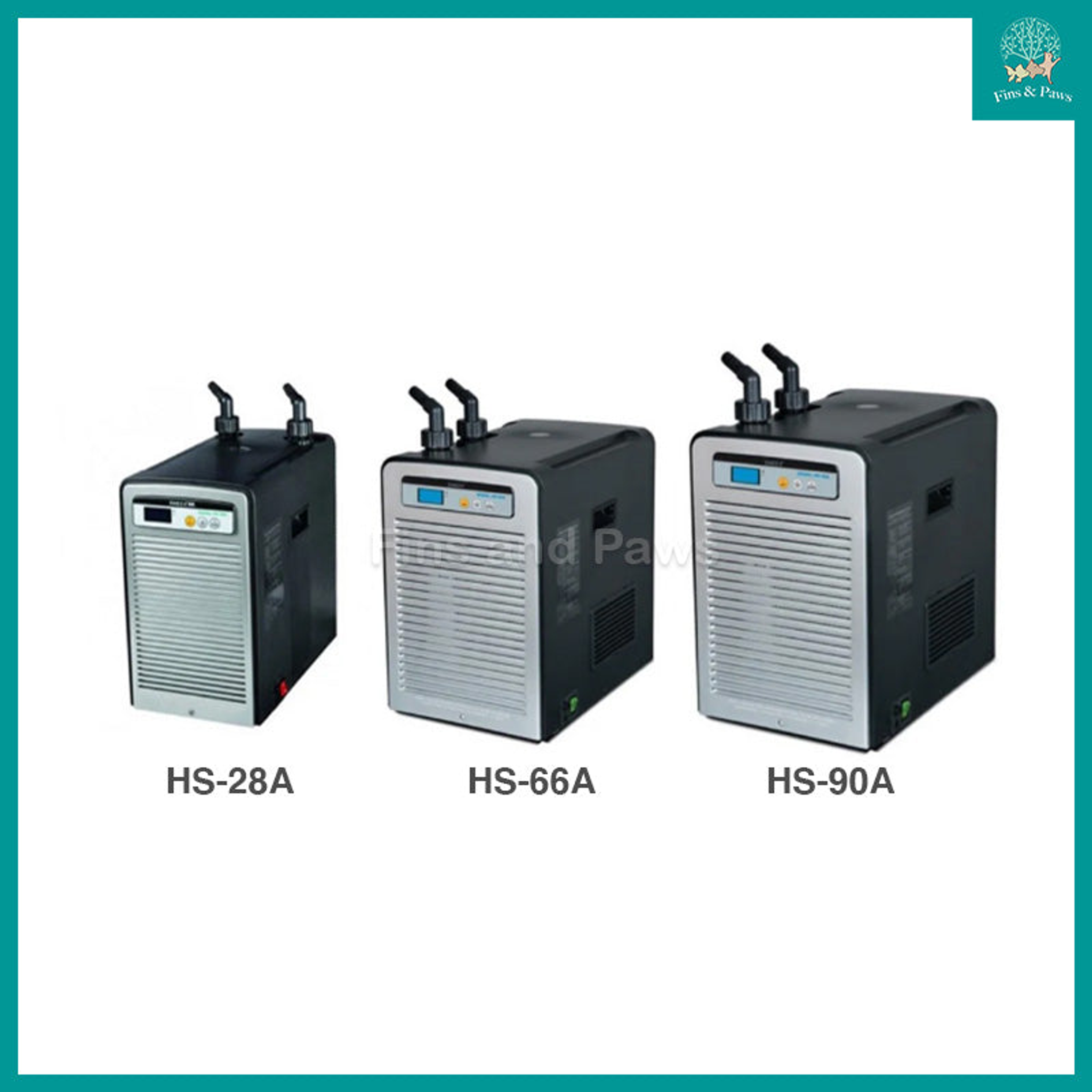

[HAILEA] HS Series Water Chiller for Freshwater and Marine Aquarium. HS-28A, HS-66A, HS-90A

Microcomputer control system

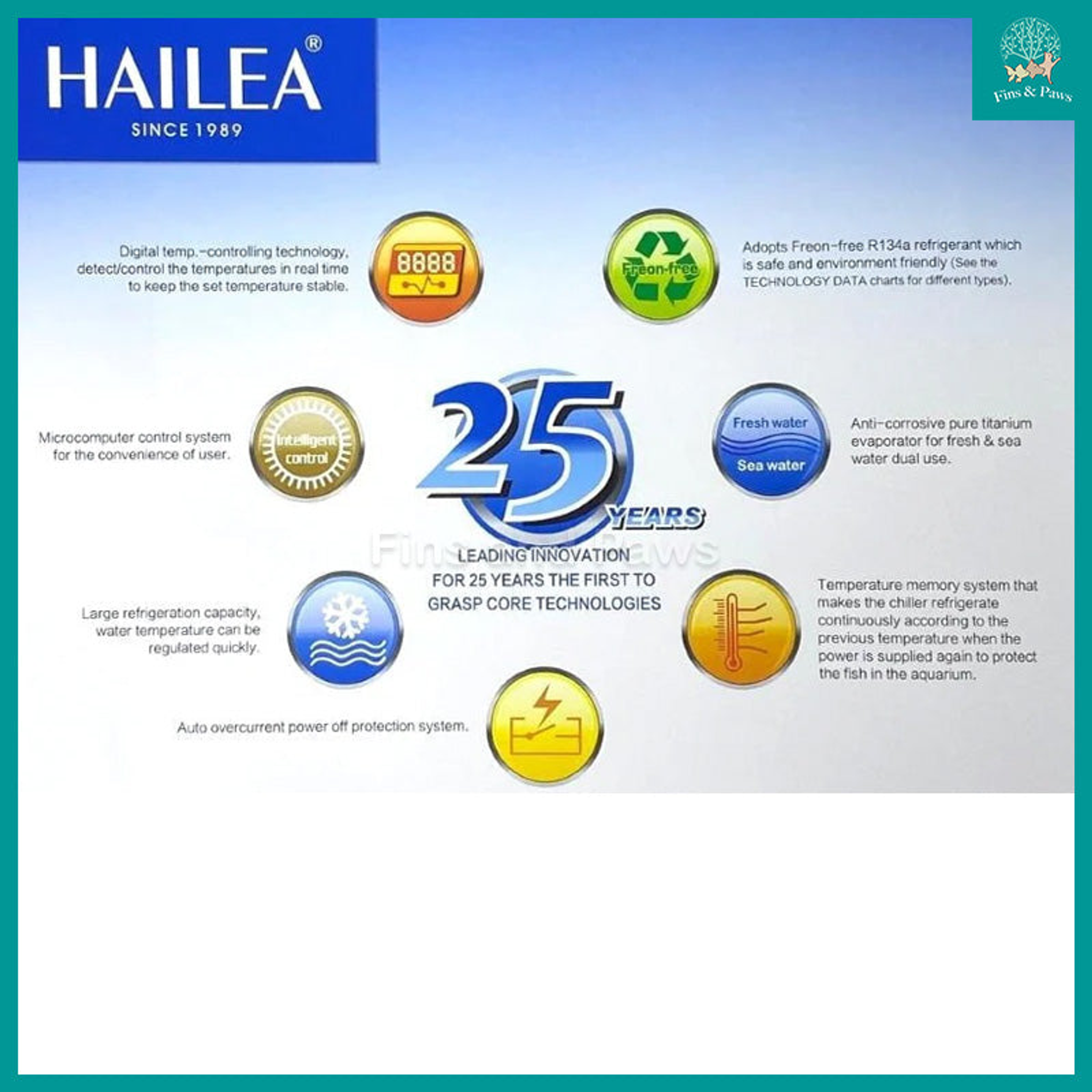

Features & Benefits of Hailea Chillers,

• Microcomputer control system for the convenience of user
• High efficiency and energy savings. Water temperature will fall down quickly and economically
• Utilizes the Freon-free R134a refrigerant gas, which is safe and environment friendly (non oZone depleting)
• Anti-corrosive pure titanium evaporator for fresh & sea water dual use
• Temperature memory system that makes the chiller refrigerate continuously according to the previous temperature when the power is supplied again to protect the animals and plants in the aquarium.
• Fantastic price point for those seeking a value-for-money product.
• Practical designing and durable materials used contribute to a long lasting, functional product meeting the needs of aquarist

What is R134a Refrigerant?

R134a refers to the refrigerant gas used in chiller/air condition compressors.
It is a common refrigerant that is used in many air conditioning applications.

Due to the nature of R134a properties which is of a HFC (hydrofluorocarbon) refrigerant, it does not have any ozone depletion potential and has little greenhouse effect.

Directions for Use:

• When moving the chiller, always transport the chiller upright.
• During/after transporting and/or fixing up the chiller, allow it to stand upright for at least 3-6 hours before powering it up. This reduces unnecessary damage by allowing the oil and fluid to flow back into the compressor.
• Do not place the chiller outdoors or near any heat source.
• Do not place the chiller in enclosed cabinets.
• Place the chiller approximately 30cm away from walls to facilitate ventilation.
• Do not cover the chiller while it is in operation as this will cause over-heating.
• For use with marine setups, it is recommended to install the chiller after the filtration systems. This is to ensure the durability and function of the evaporator.
• Regular maintenance of the circulating systems, front draft hood and air filters are advised at once every month.
• For troubleshooting of issues such as not being able to power on the unit, faulty powering issues, lack of refrigeration, or loud noises / vibration from the unit. Please refer to the instructions booklet for suggestions on basic problem solving.

Provided Accessories and Attachments:

• 2x Elbow adaptors,
• 2x Inlet and outlet rubber covers,
• 2x Metal hose clamps,
• 2x Spare adaptor rubber stoppers/seals
• 1x Fuse,
• 1x Instruction booklet,

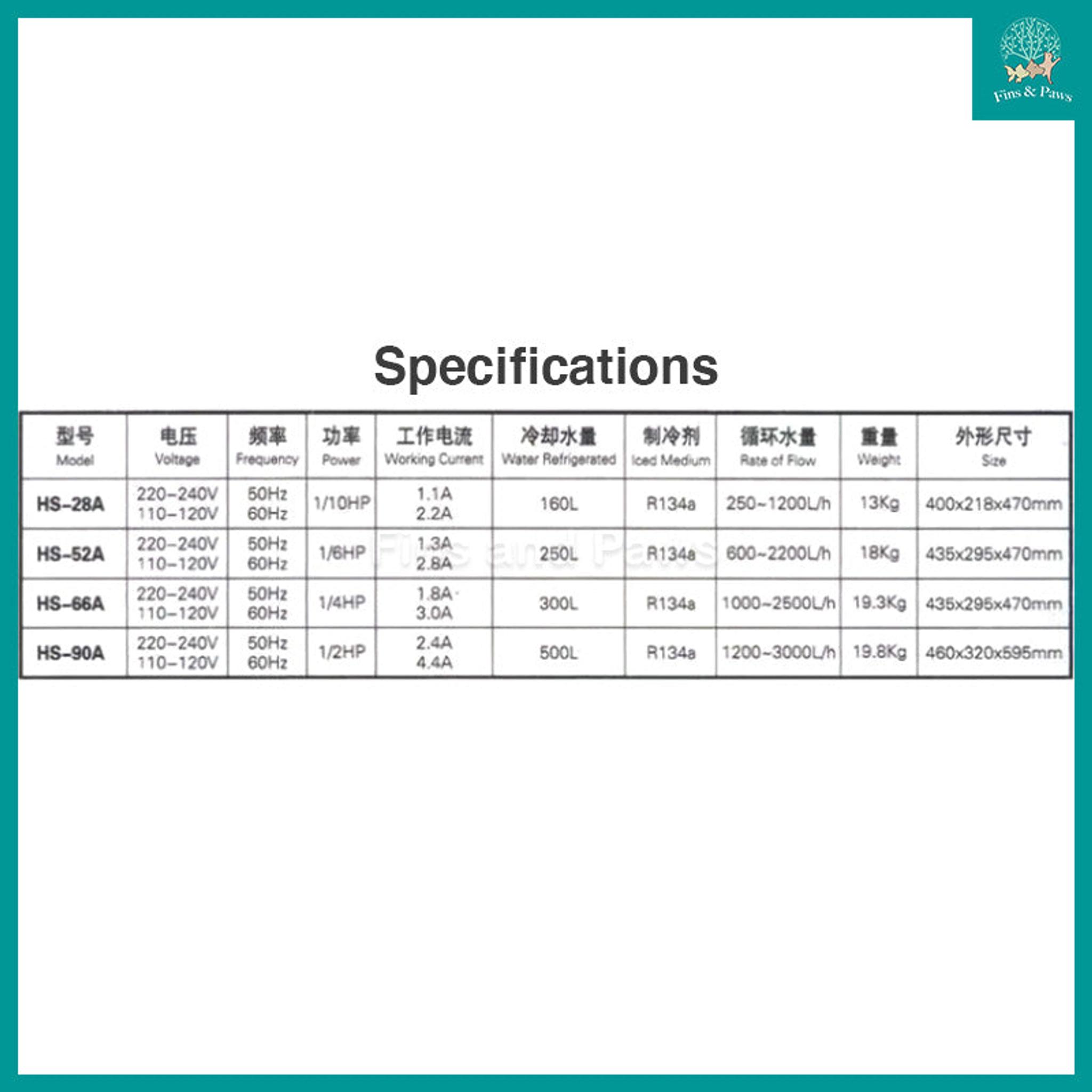

Technical Data

Model: HS28A
Iced Medium: R134a
Voltage: 220-240V
Frequency: 50Hz(60Hz)
Power: 1/10HP
Recommended Tank Size: 150L
Pump Water Flow: 250-1200l/h
Size: 400 x 218 x 415mm
Adaptor Diameter: 12mm & 16mm
Weight; 15kg

Model: HS66A
Iced Medium: R134a
Voltage: 220-240V
Frequency: 50Hz(60Hz)
Power: 1/4HP
Recommended Tank Size: 300L
Pump Water Flow: 1000-2500l/h
Size: 435 x 295 x 470mm
Adaptor Diameter: 16mm & 19mm
Weight; 18.6kg

Model: HS90A
Iced Medium: R134a
Voltage: 220-240V
Frequency: 50Hz(60Hz)
Power: 1/2HP
Recommended Tank Size: 500L
Pump Water Flow: 1200-3000l/h
Size: 460 x 320 x 590mm
Adaptor Diameter: 16mm & 19mm
Weight; 22kg
