Hailea CP Series AC/DC Air pump (AC/DC Dual Use Air Pump)

FEATURES:
1. Micro regulator is available in AC / DC operation mode. The air output can be adjusted at ones desire.

2. Multi-level muffling design, low noise, large air output and high pressure.

3. Intelligent microcomputer control system and protective circuits of battery. Battery can be charged when the pump is connected with AC power supply.

4. In case of power failure in AC working state, it can automatically switch to DC working state, and the DC power supply can work continuously for more than 8 hours.

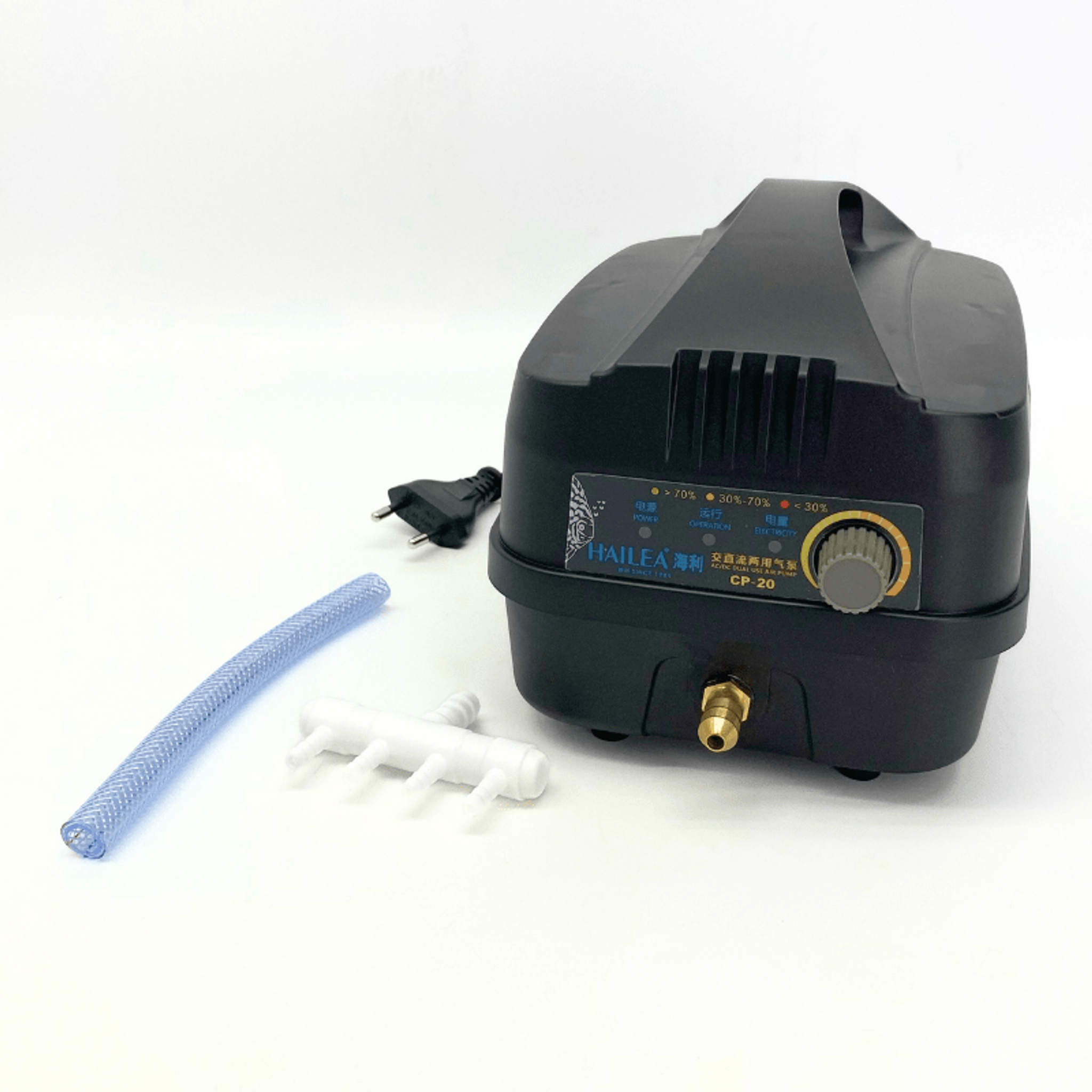

CP-20

Technical Data:

• Voltage: 110-120V/ 220-240V
• Frequency: 50/60Hz
• Power: 6W
• Working time of DC: 9 hours
• Battery capacity: 6V/6AH
• Output: 20L/min
• Pressure: 0.028Mpa
• Dimensions: 215x150x147mm

CP-40

Technical Data:

• Power: 8W

• Rated voltage: 110-120V/220-240V
• Frequency: 50/60Hz
• Rated Pressure : 0.024Mpa
• Rated Output: 40L/min
• Battery Capacity: 12V/6AH
• Working time of DC: 9 hours
• Weight: 3.3kg
• Dimension: 260x170x167mm

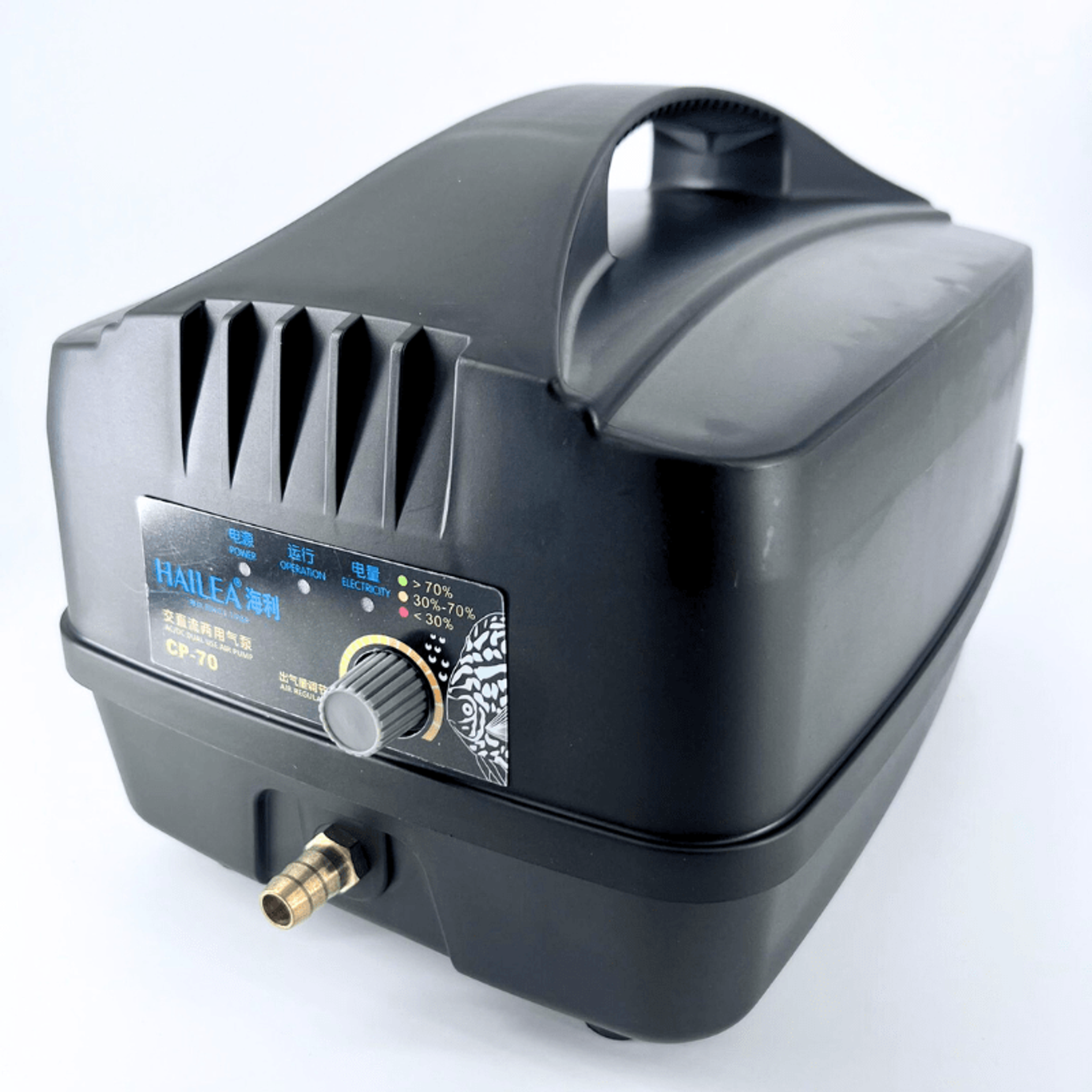

CP-70

Technical Data:

• Power: 16W
• Capacity: 70 l/min
• Rated voltage: 110-120V/220-240V
• Frequency: 50/60Hz
• Rated Pressure : 0.03Mpa
• Rated Output: 70L/min
• Battery Capacity: 12V/12AH
• Working time of DC: 9 hours (longest timing at slowest speed)
• Weight: 6.5kg
• Dimension: 302x217x195mm

Please click from here for looking bigger air pump CP-120

OPERATION INSTRUCTIONS:
1. The unit is designed finely. Adopts maintenance free and fully automatic chargeable battery which can change to DC working state when the AC power turns off.

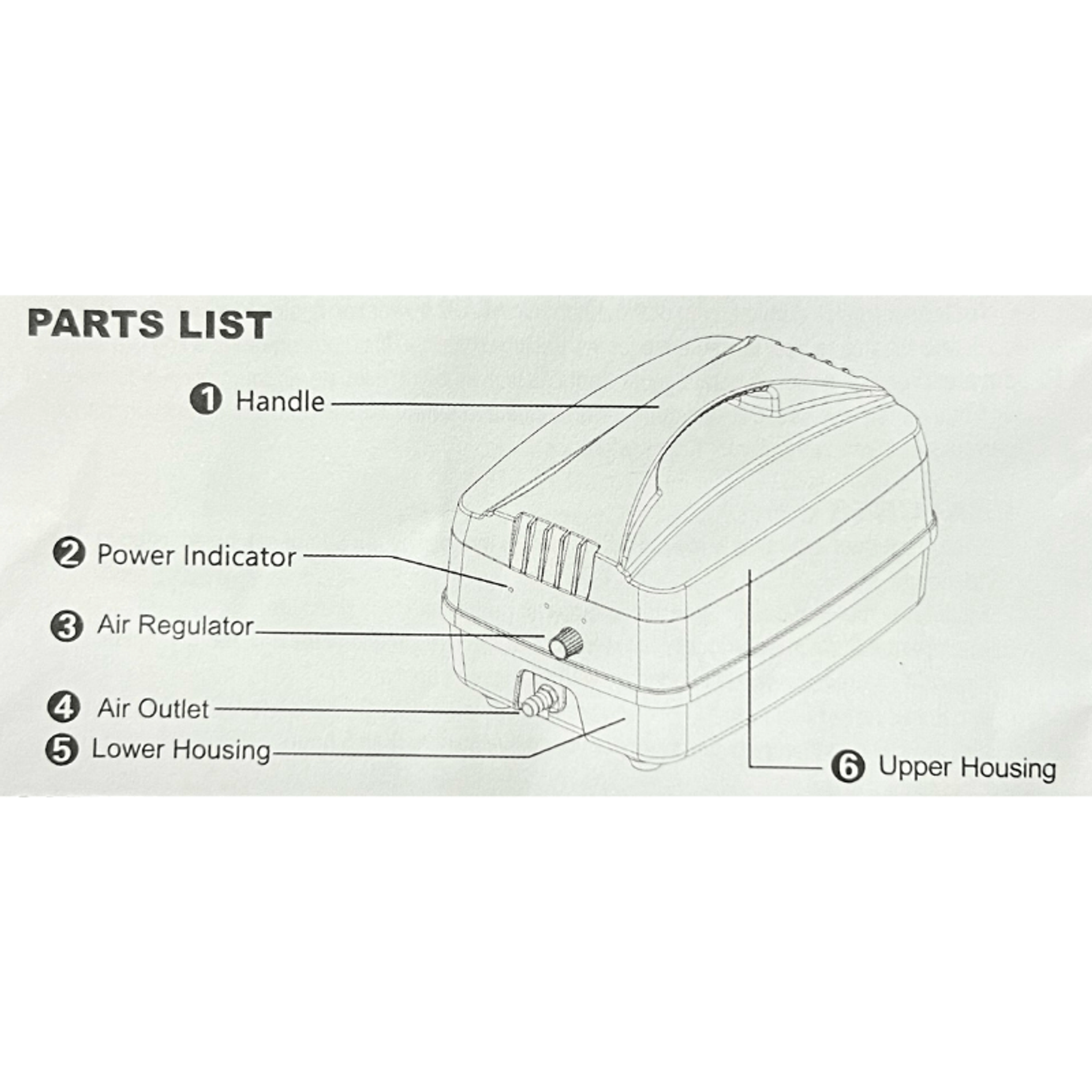

2. The three panel indicators show three functions:
A: Power indicator: When it is green, it shows AC working state.
B: Operation indicator: When it is red, it shows working state.
C: Recharge indicator: When it is red, it shows recharging state. When it is green, it shows it has finished recharging.

3. The elaborately designed battery protection circuit protects the battery. When the battery has finished charging, it can turn off automatically to protect from over-charging. When its electric current is too low, it can stop working automatically to protect from over-discharging. These prolong its service life.

4. Air output adjustment. Adopts the regulator to adjust the air output. The air output can be adjusted freely in both AC and DC working states.

5. If the air pump hasn't been used or has been used in AC power supply for a long time, it is required to work in DC for about 8 hours every one or two months.

6. If AC/DC Air Pump is not able to work under direct current, it is required to recharge for about 8 hours. If still does not work after recharging, replace the battery.
