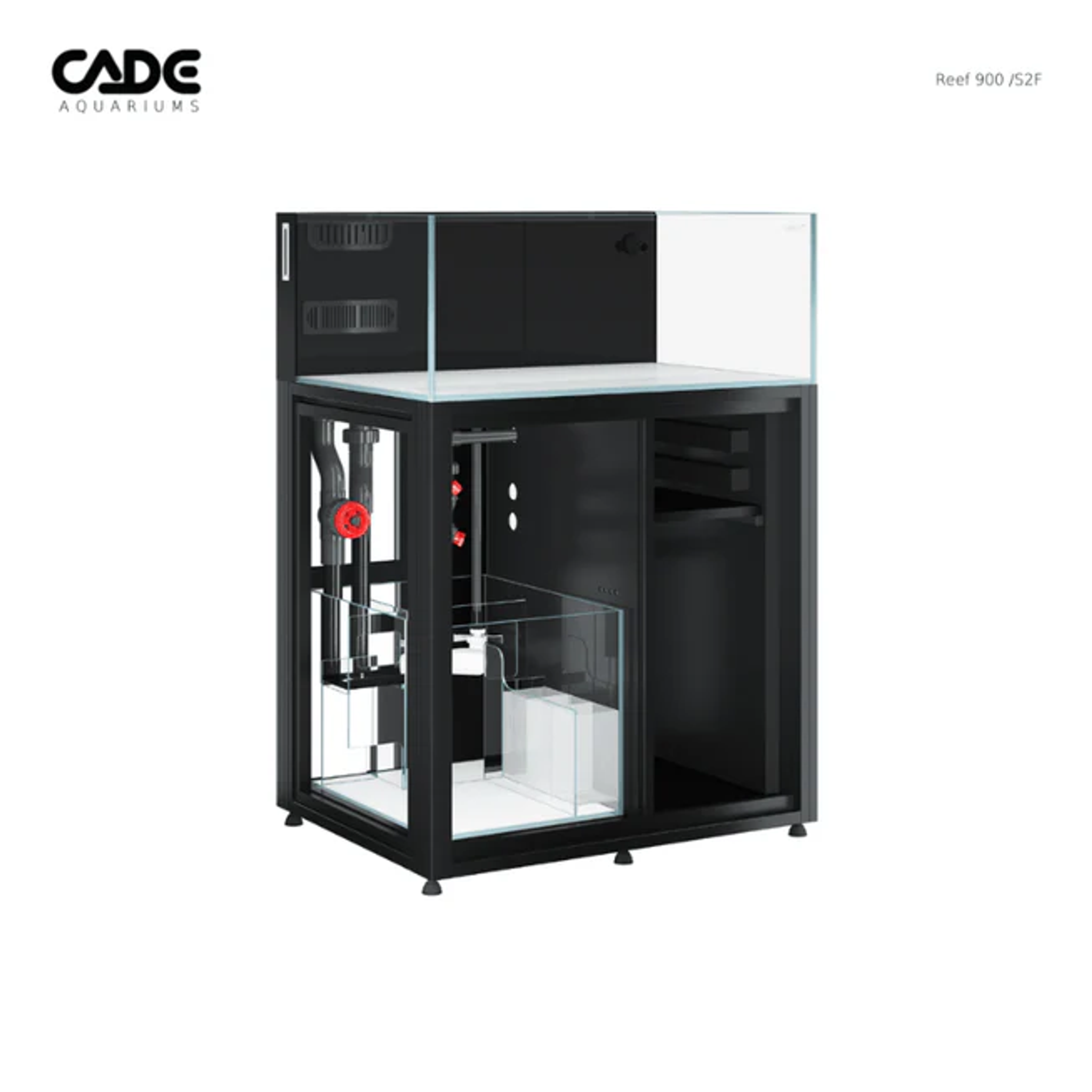

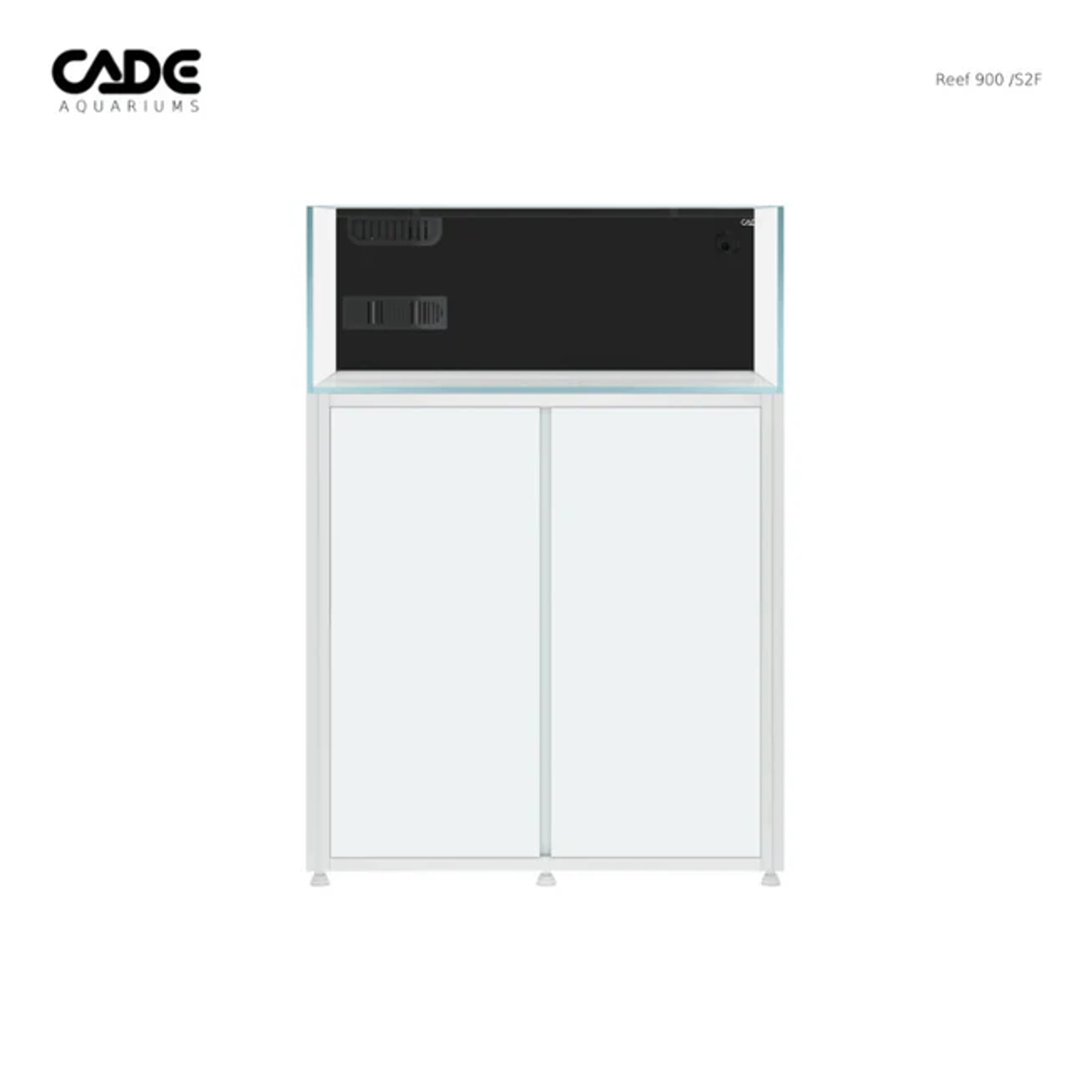

CADE Reef S2 Frag 900 (Black/White) (90x70x35cm)

The CADE Reef S2/F is our range of customisable rimless, sump filtered saltwater Aquariums designed specifically for the advanced reef aquarist.

The R-S2/F has been expertly crafted to enable the aquarist to build a truly personalised Reef Aquarium system without limitation. The Reef S2/F combines functional design and unique sophistication to produce a system that both compliments contemporary home decor whilst fulfilling all of your Reef keeping requirements.

Designed in Australia, the CADE Reef S2/F range represents the perfect foundation to build your Reef.

Specifications:

TANK

• 900x700x350 (LxWxH)
• Capacity (Inhabitable): 189L / 50 gal
• System Capacity (Total): 238L / 63 gal
• 12mm Opti Clear Glass Tank
• Open Top / Rimless Tank
• Laser Etched Logo
• Perfect Cut Silicone Edges
• Highest Quality German Whacker Silicone
• Double Laminated Black Glass Rear Panel
• White Tank Base Panel
• Concealed 'Twin Intake Weir' (Unique to CADE)
• Super Fine Adjustable Sanking Gate Valve' & Emergency Drain
• Extra large 15.6L / 4.1 gal Gravity Fed Auto Top Off System
• Jump Net Cover (NEW)


CABINET

• 900x700x900 (LxWxH)
• 100% Waterproof Cabinet (Glass/Aluminum)
• Cable Management & Dosing Pump Shelf
• Dedicated Controller Management (Right Side Door)
• Sump Maintenance Access (Left Side Door)
• Power 8x Plug Power Boards with on/off Switches
• Accessories / Dosing Pump Shelf (Removable)
• Adjustable Castor Feet for Cabinet Levelling
• Hidden Adjustable Rust Proof Door Hinges
• Hidden Magnetic Door Closers
• Cabinet Supplied Assembled with Sump Installed


SUMP & PLUMBING

• Newly Designed Glass Sump Filtration
• Sump Operating Vol. 49L / 13 gal
• Filter socks 4" (x1)
• Media Baskets (x3) for Bio and Chemical Media
• Pre Fabricated Screw Connect Plumbing (No silicone required)
• Reactor Water Feeds (x1)
• Chiller Water Feed (x1)
• One Way Return Valve


The tank

The CADE Frag Series 900 S2/F is a rimless, open-top tank made of super high-clarity Opti-Clear glass with flat polished edges. With dimensions of 900 x 700 x 350 (LxWxH), it has an inhabitable capacity of 50 gallons and a total system capacity of 63 gallons. It is constructed using the highest quality German Whacker silicone; silicone is precision applied producing perfect gaps and a quality finish. The CADE logo is laser etched within the front glass panel as a mark of authenticity.

The water management system

The CADE Reef S2/F set-up features a Backdrop Water Management System; this feature splits the rear and front of the tank with a glass panel positioned 10 cm off the rear of the tank. This panel consists of two 5mm laminated glass panels with a black background color. The background color is embedded between the 2 sheets of glass ensuring there is no possibility of discoloration and minimizes the risk of scratches. The Reef S2/F also features a laminated white base, making it perfect for aquarists that prefer a bare bottom reef or a thin layer of sand (which often is blown around, exposing the base glass).

The CADE Frag Series 900 S2/F weir on the left side of the multifunction water management system offers both surface and low level water intakes. This improves uptake of heavier suspended solids that fail to reach regular surface intakes on regular weirs. Having an extra weir intake also serves as an emergency back up should one intake become blocked (by a carpet anemone for example), making it an important safety feature. The Reef S2/F weir is neatly concealed with a flip top cover; provisions for power cable management keep it all very neat and provides easy access for maintenance and cleaning.

Inside the weir, water is delivered to the sump by two pipes: A main downflow pipe and an additional emergency overflow pipe which assists flow to the sump filter should the main pipe become blocked. The water intake system is designed to ensure quiet operation. The CADE Reef S2/F gives you the ability to choose between 2 water levels (a high and low level). Setting the water height is as simple as adjusting the gate valve in the sump. This is particularly handy if you want to add a wave maker to your system and need a lower water level.

The remainder of the multifunction water management system is allocated to the ATO reservoir. This convenient feature prevents the need for frequent refilling of evaporated aquarium water. A plastic flip cover provides access to the ATO for easy refilling. A water volume indicator on the side of the tank lets you know when your water level is low.

The sump

The CADE Frag Series 900 S2/F sump is uniquely designed to maximize space and provide unlimited versatility. This model is equipped with a pre-filtration sock, a large Protein Skimmer/Reactor chamber, a Bio/Chemical Media Chamber and a Return Pump Chamber which also houses the ATO refill float valve that connects to the water storage reservoir in the rear of the tank. Individually removable media baskets permit efficient use of biological and/or chemical filter media.

The cabinet

The extra-tall and 100% waterproof S2/F Reef Frag Tank cabinet requires no assembly; it is completely assembled with the sump pre-installed within a solid plywood box. You simply open the box, position the cabinet, rest the tank on top and screw your plumbing together.

This cabinet has both front and side doors. Door hinges and magnetic latches are hidden within the frame work. The right side cabinet door accesses the Controller Management area with power on/off switches displayed for easy access. This area is specifically designed for mounting electrical controllers keeping them neat and safely away from saltwater.

The CADE Frag Series 900 S2/F includes a chiller/accessories space on the right side of the cabinet. The ample space provides sufficient space for both a chiller and other items such as dosing vessels. An accessories shelf is also provided for items such as a dosing pump; this area also provides space to neatly manage power cables that connect to the internal plugs on the Power Distribution Unit.

To protect the tank, the cabinet also has a foam padding pre-installed to protect the tank. Industrial grade adjustable caster feet (included) make it easy to level out your aquarium on uneven floors.
