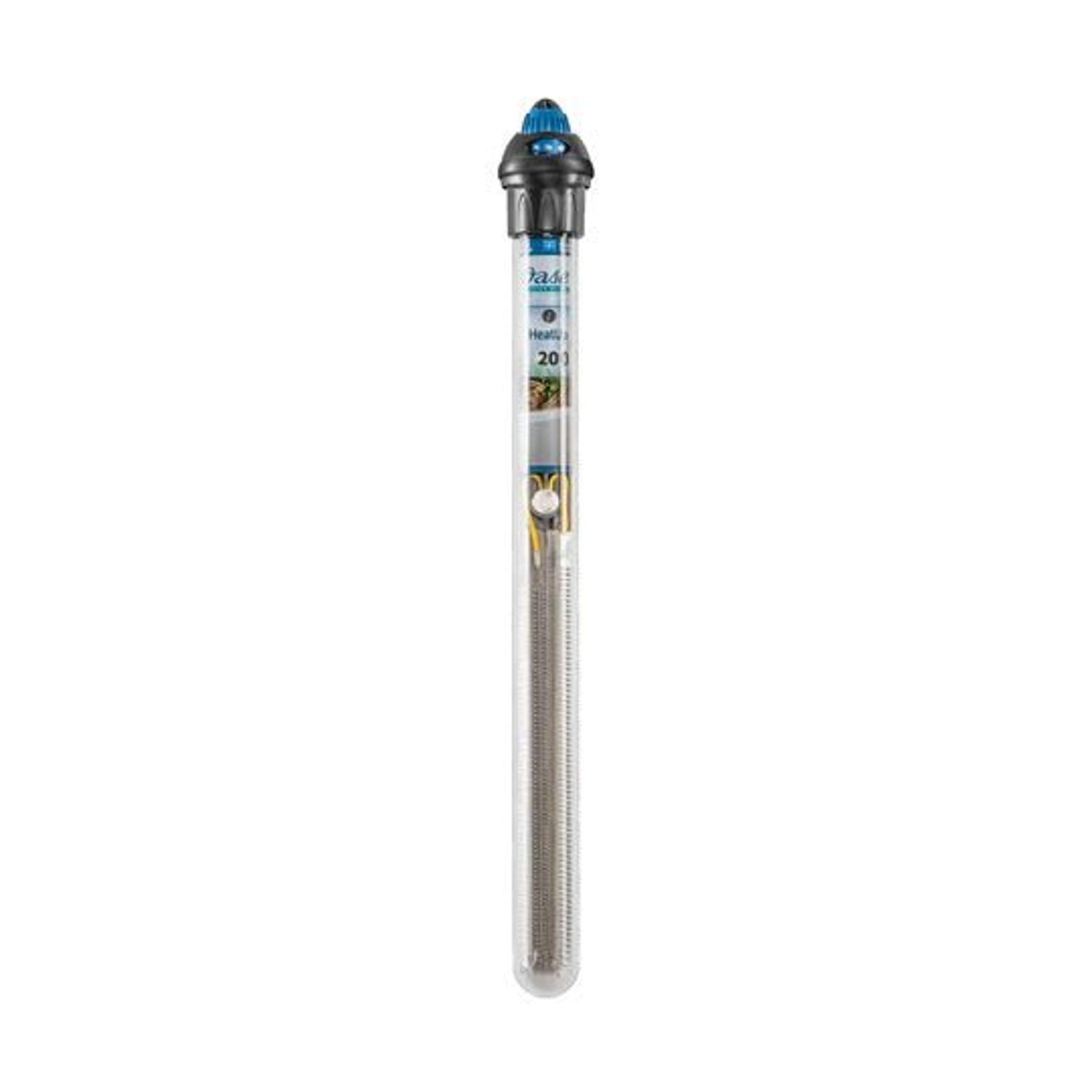

OASE HeatUp Heater - Precision Temperature Control (25-400L Capacity)

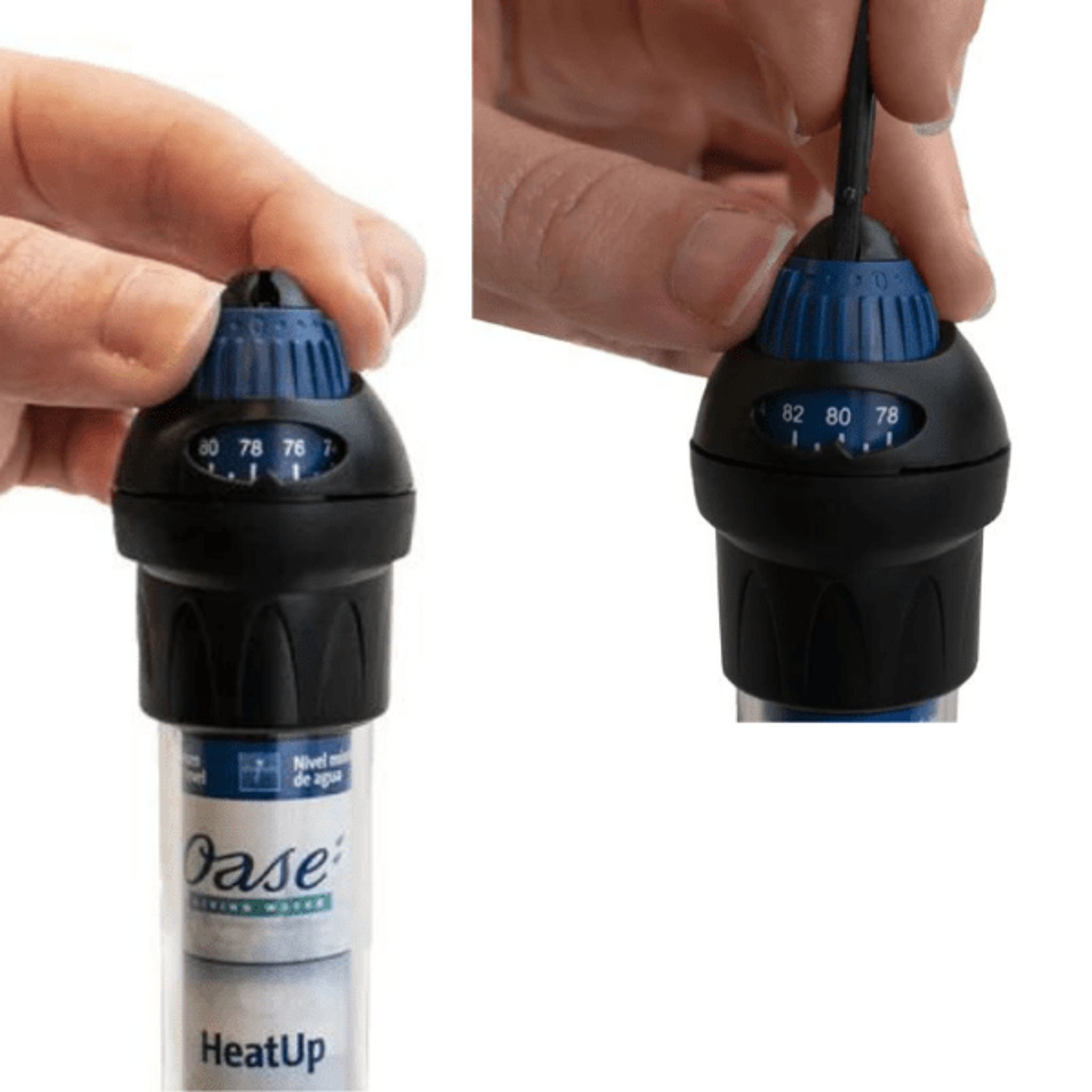

• Uniform temperature levels – Temperature levels are monitored and controlled by bi-metal technology for automated heating, includes a thermal shutoff switch for added protection
• Durable – High quality, double insulated quartz glass, created to withstand greater temperature fluctuations than glass
• Only operate with water at a water temperature of +4 °C to +35 °C.
• Only use indoors and for aquaristic purposes in the home (not for commercial use).

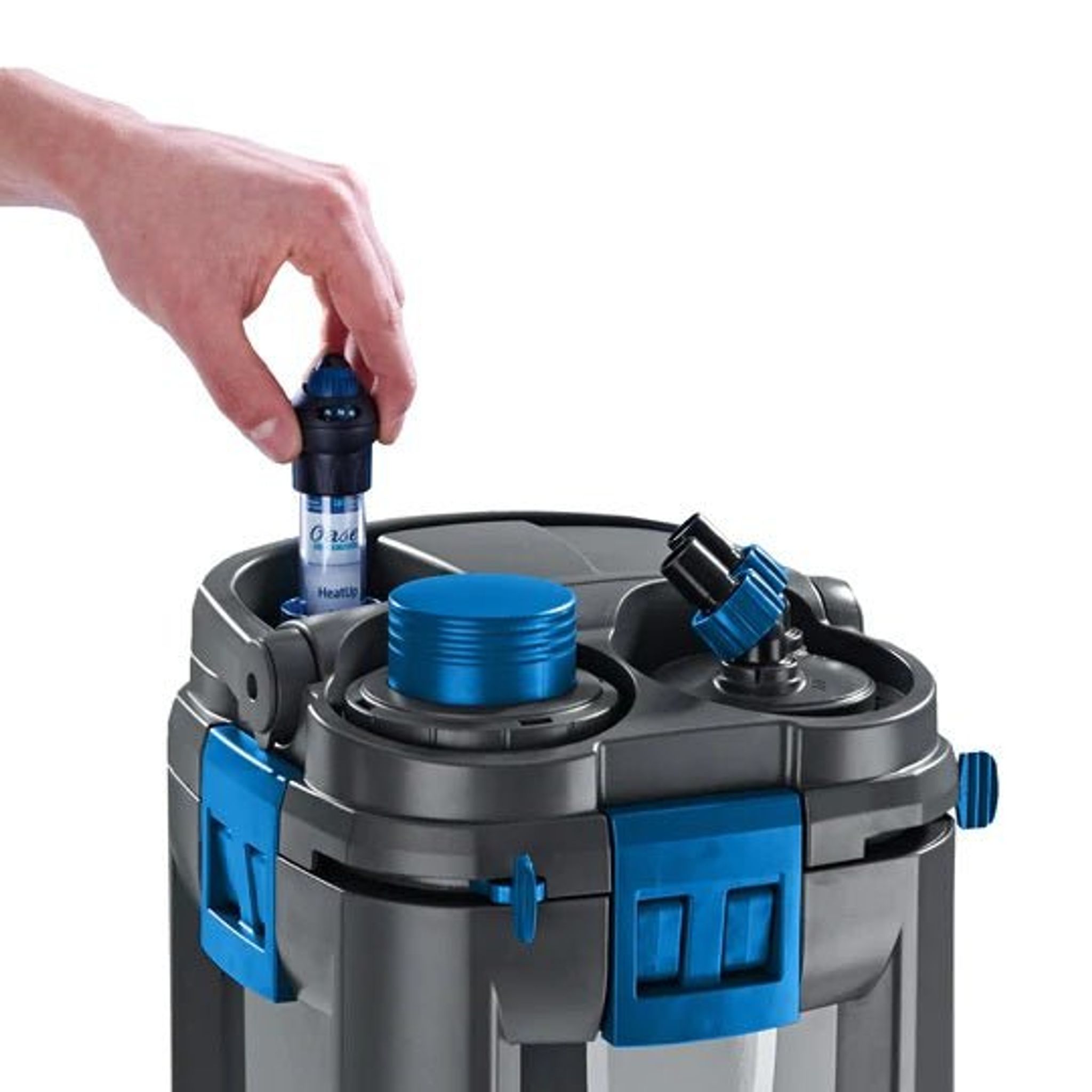

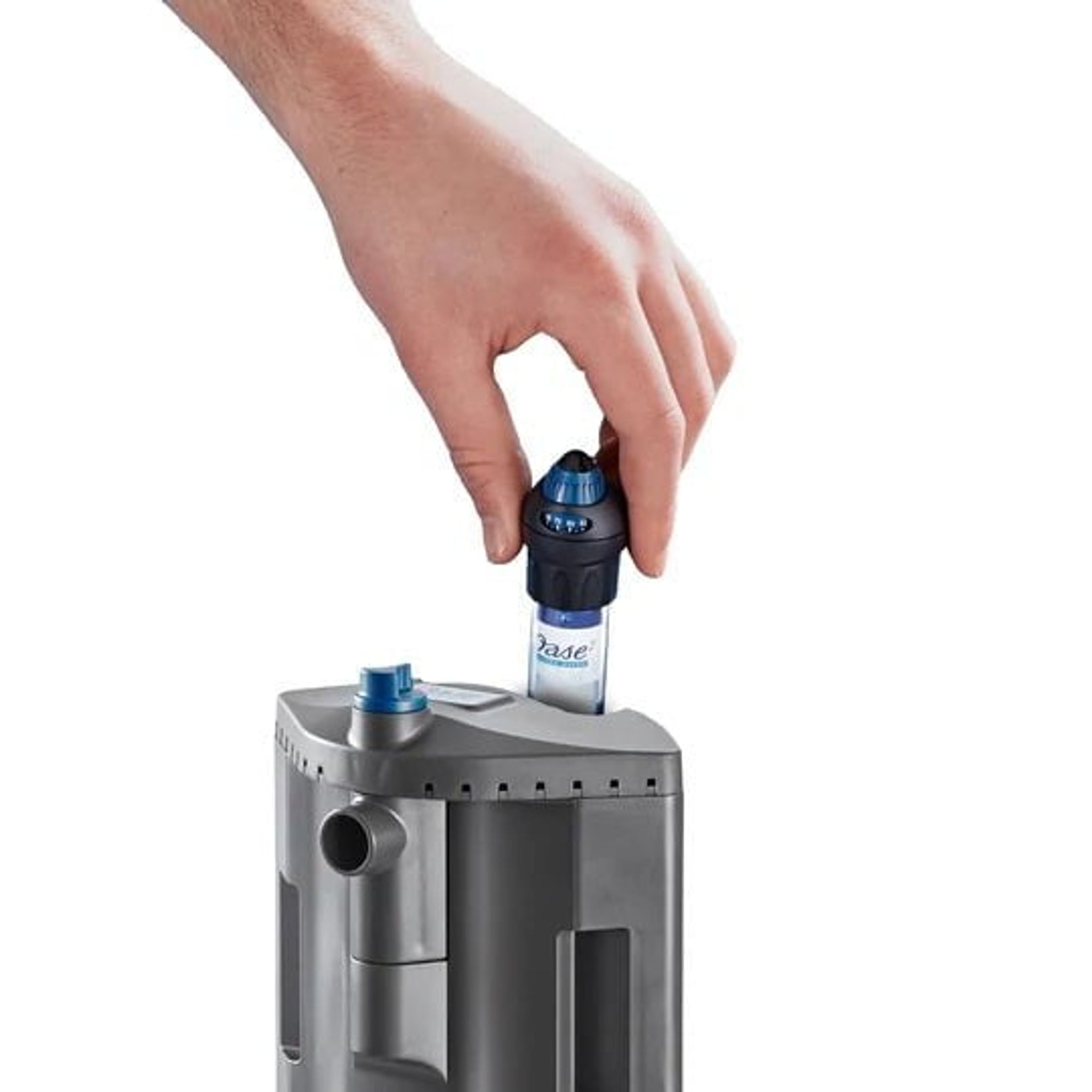

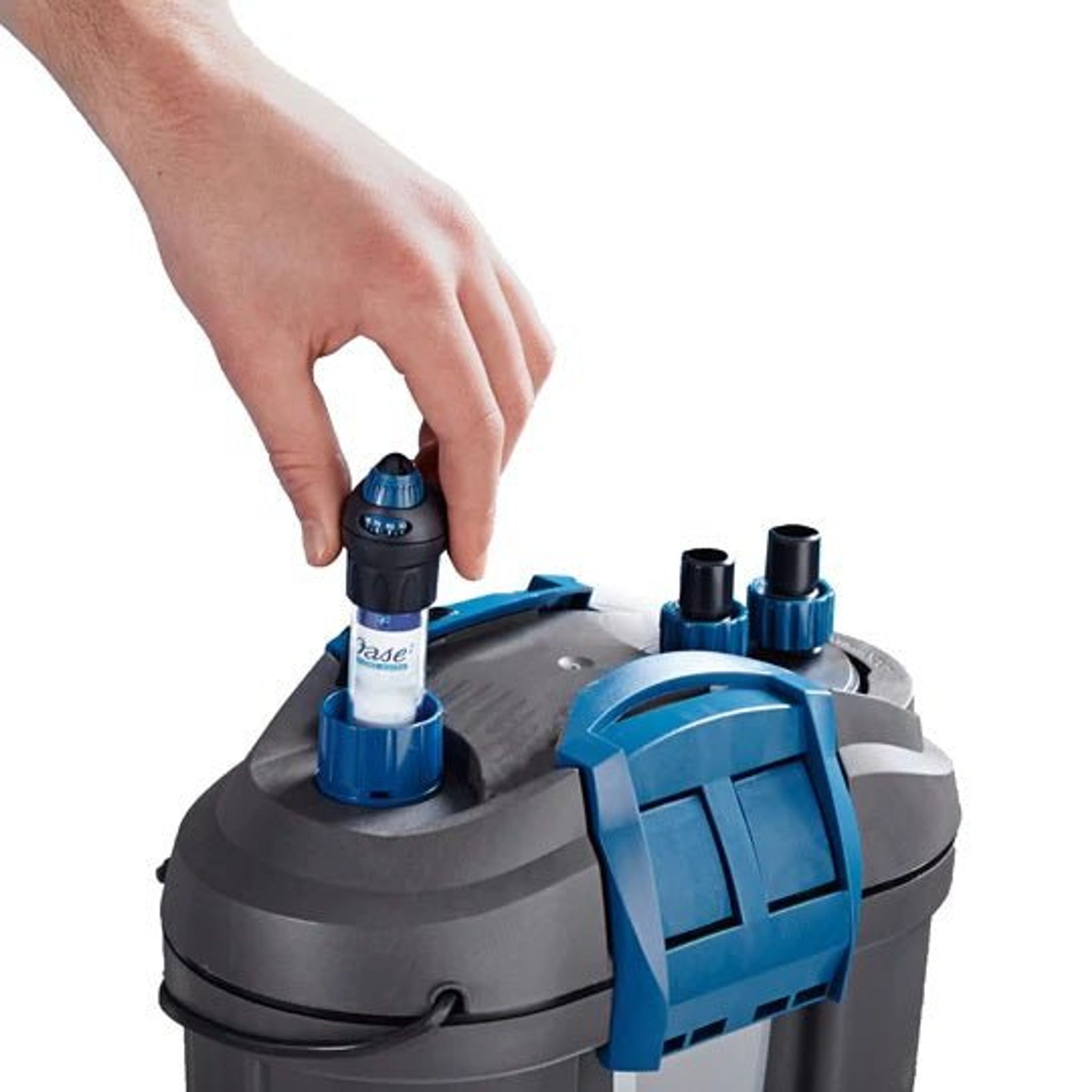

• Filter integration capabilities – Integrate this heater into the BioPlus 200, FiltoSmart 200, or BioMaster 350 to combine filtration and heating into one location (Use the ThermoFit to secure the heater into the FiltoSmart 200 filter)

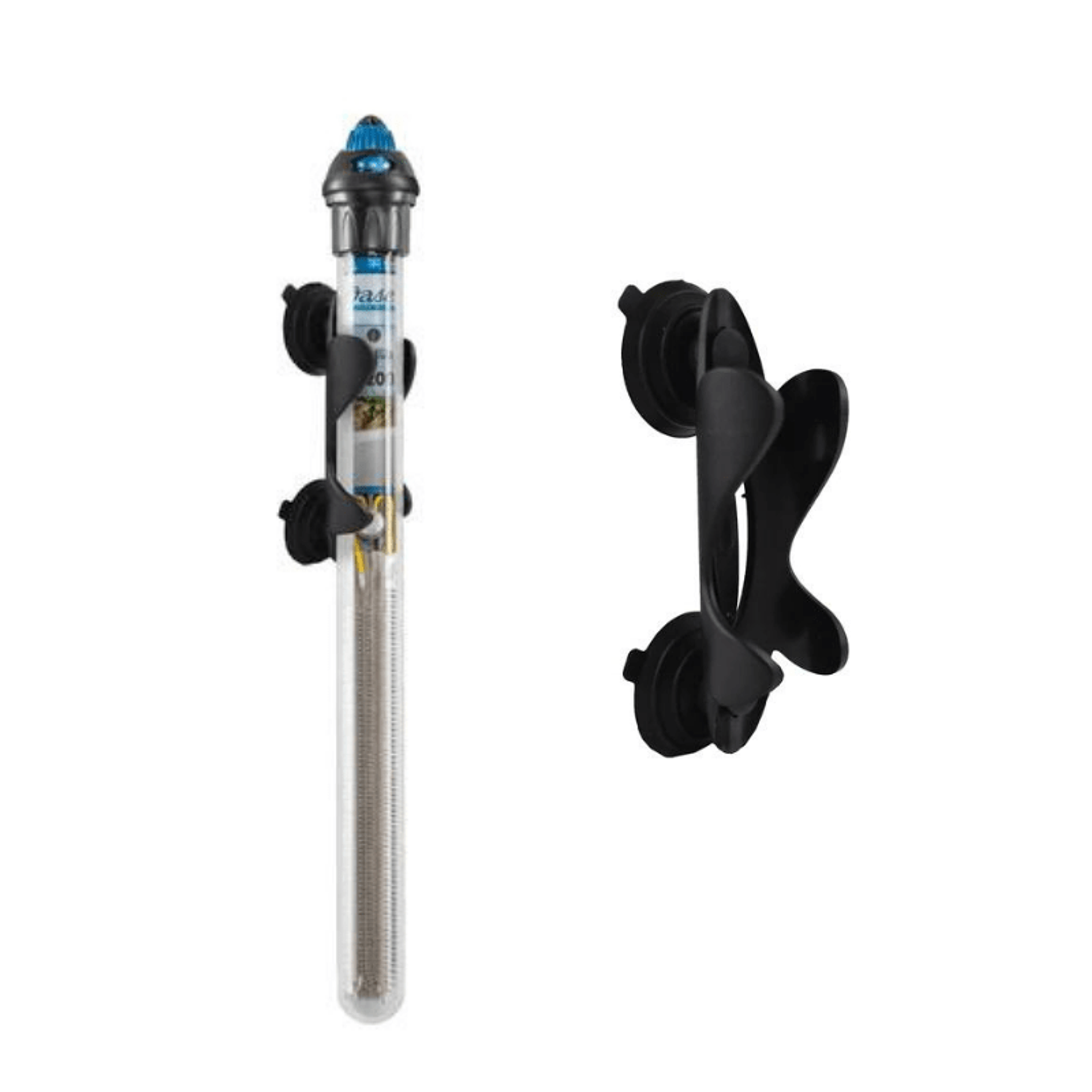

• Easy installation: Including holder
• Function check: The heating function is displayed via the activated control light
• Made in Italy, backed by German engineering



Technical Specifications,
- 3 Years warranty
- Suitable for freshwater & saltwater setups

Heatup 25

Dimensions (Ø x H) mm 23 x 205
Rated voltage 230 V / 50 Hz
Power consumption W 25
Power cable length m 1.50
Net weight kg 0.20

Heatup 50

Dimensions (Ø x H) mm 23 x 205
Rated voltage 230 V / 50 Hz
Power consumption (w) 50
Power cable length (m) 1.50
Net Weight (kg) 0.20

Heatup 100
Dimensions (Ø x H) mm 23 x 245
Rated voltage 230 V / 50 Hz
Power consumption (w) 100
Power cable length (m) 1.50
Net Weight (kg) 0.22

Heatup 150
Dimensions (Ø x H) mm 23 x 315
Rated voltage 230 V / 50 Hz
Power consumption (w) 150
Power cable length (m) 1.50
Net Weight (kg) 0.25

Heatup 200
Dimensions (Ø x H) mm 23 x 315
Rated voltage 230 V / 50 Hz
Power consumption (w) 200
Power cable length (m) 1.50
Net Weight (kg) 0.25

Heatup 300
Dimensions (Ø x H) mm 23 x 370
Rated voltage 230 V / 50 Hz
Power consumption (w) 300
Power cable length (m) 1.50
Net Weight (kg) 0.28

Heatup 400
Dimensions (Ø x H) mm 23 x 440
Rated voltage 230 V / 50 Hz
Power consumption (w) 400
Power cable length (m) 1.50
Net Weight (kg) 0.34

***NOTE***

• Before switching on, ensure that the heater is immersed in water at least up to the marking for the minimum immersion depth.
• Wait approx. 30 minutes before switching on so that the thermostat can adjust to the temperature of the water.
• Route the power connection cable such that it forms a drip loop!
• To Switch on: Connect the unit to the mains. The unit switches on immediately.
• To switch off: Disconnect the unit from the mains.
