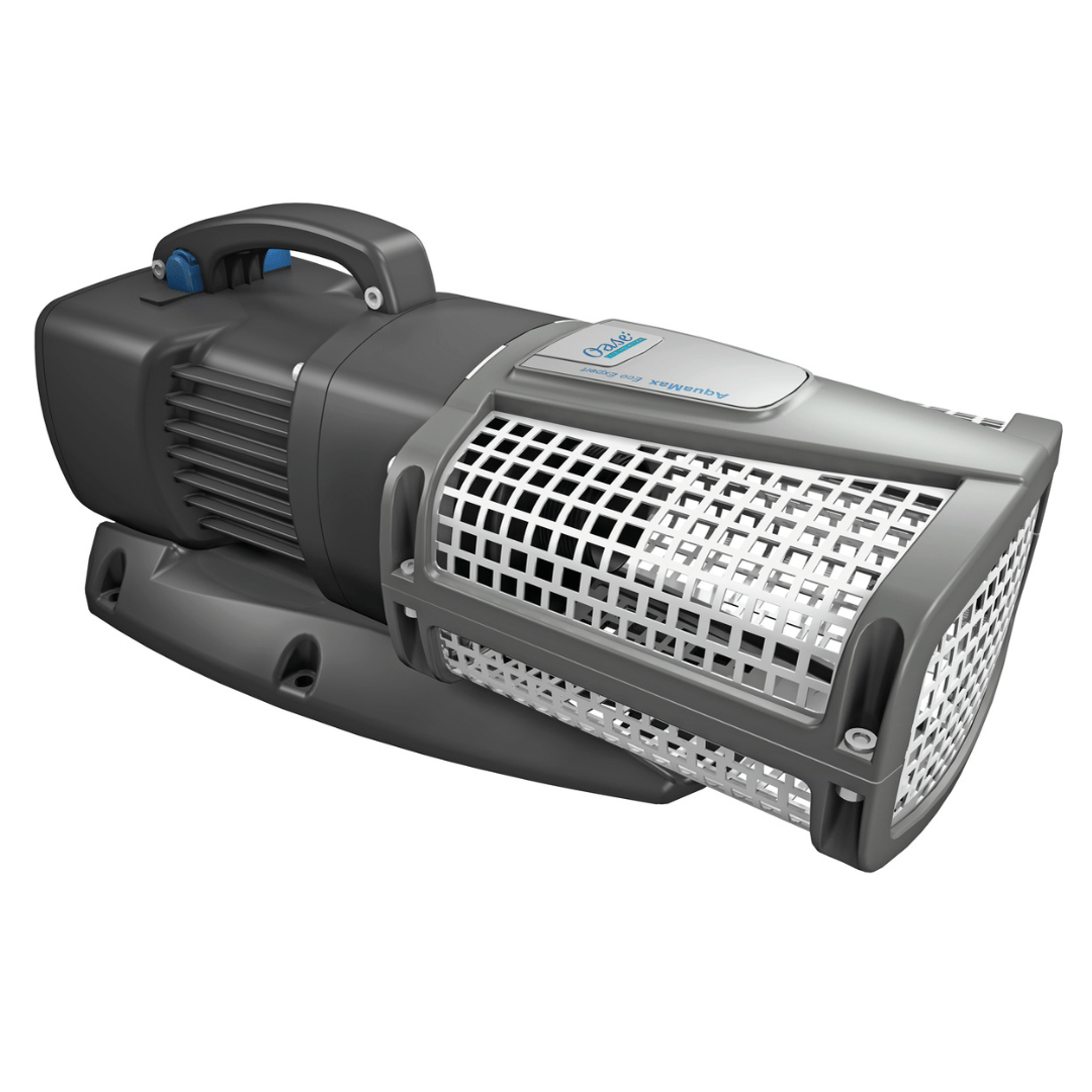

Oase AquaMax Eco Expert 21000-44000 (10m cable)

Oase AquaMax Eco Expert 21000-44000

The brand new OASE AquaMax ECO Expert pump incorporates ultra energy efficient ECO Motor Technology to provide the lowest possible running costs, with flow rates up to an impressive 21,000 litres/hour and a maximum vertical lift of 8 metres.  Aquamax ECO Expert pumps are incredibly robust and designed to supply water to larger pond filters or can be used to create impressive waterfalls and streams. The Expert Eco pump is designed to handle solid particles of up to 11mm such as fish and Koi waste, silt and detritus for passing to a suitable Pond Filter System and are capable of continuous underwater operation.

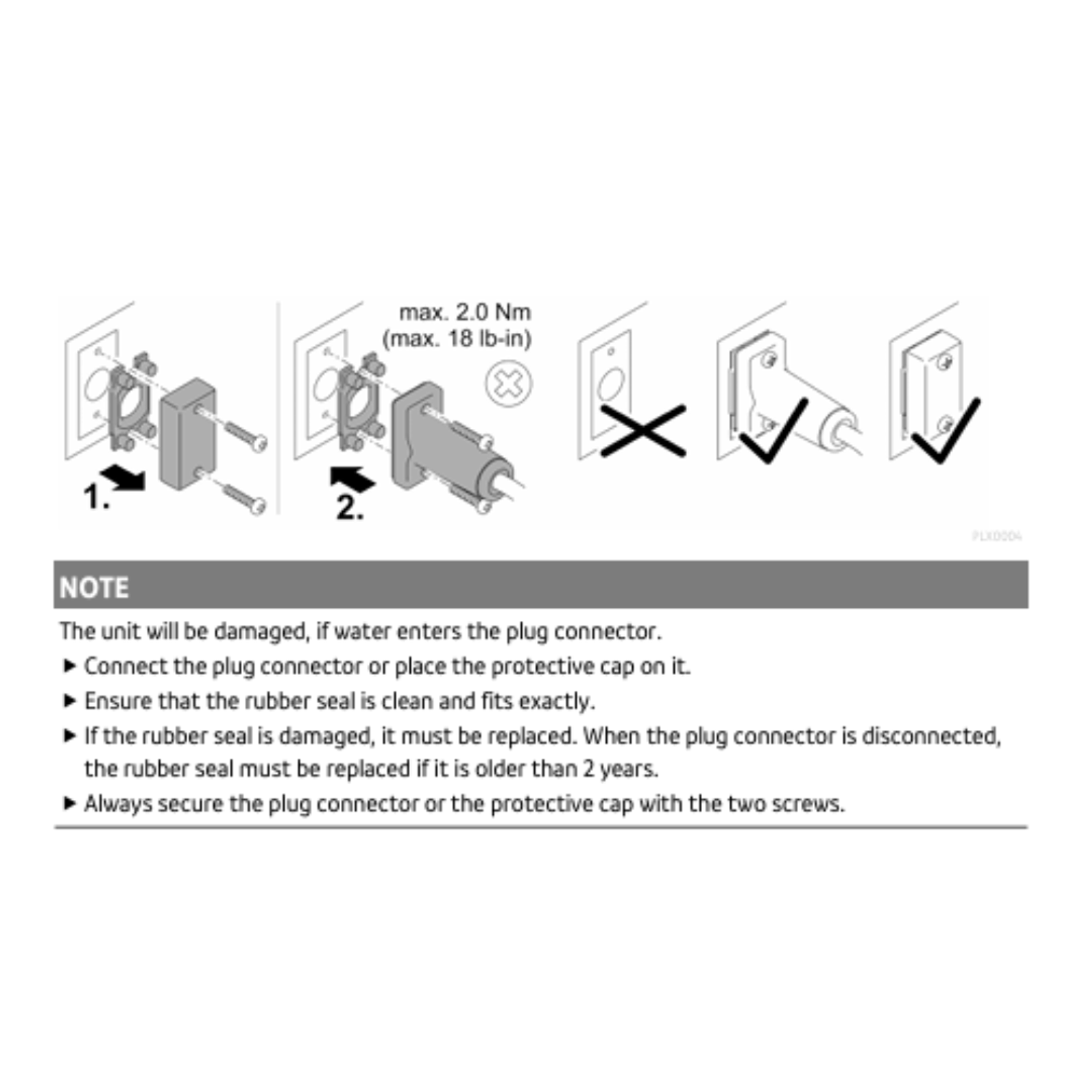

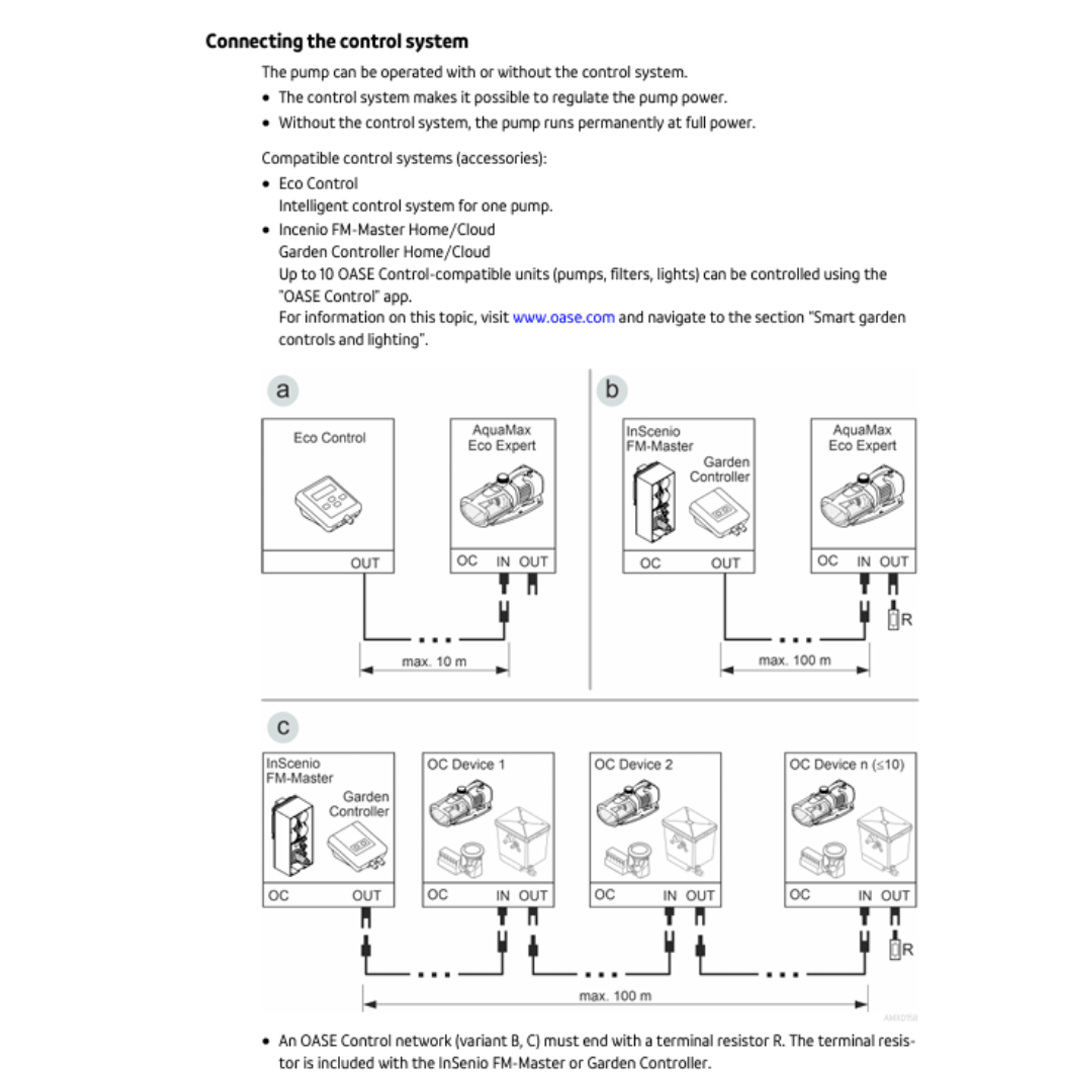

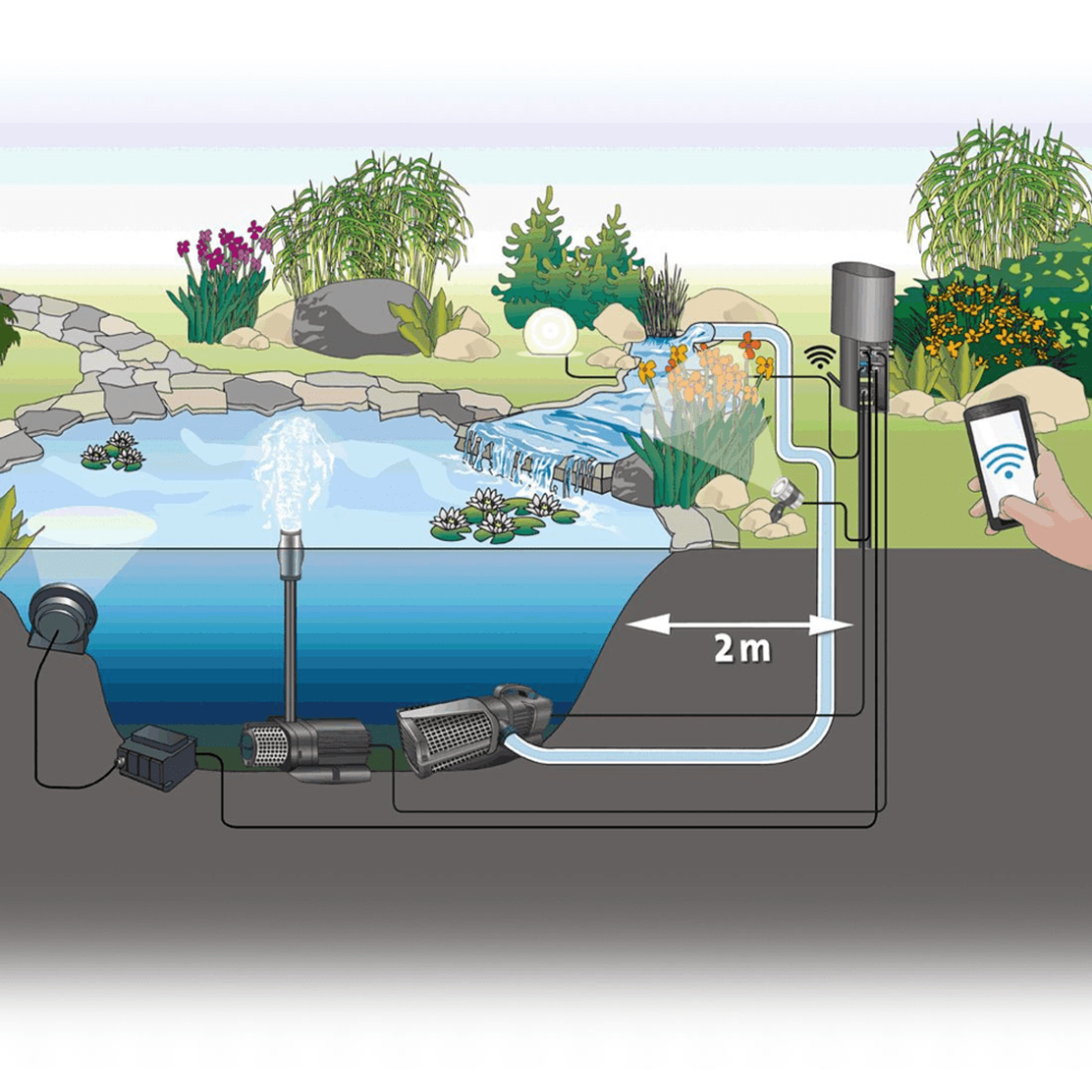

For ultimate control, the new OASE FM Master WLAN Smart Controller can be used to connect the Expert Eco Pump via DMX, allowing flow control via a smart phone or tablet using WiFi signal.  Alternatively, the new Aquamax Eco Controller can be connected via the DMX cable port at the rear of the pump, for cost effective digital control of the pump performance.

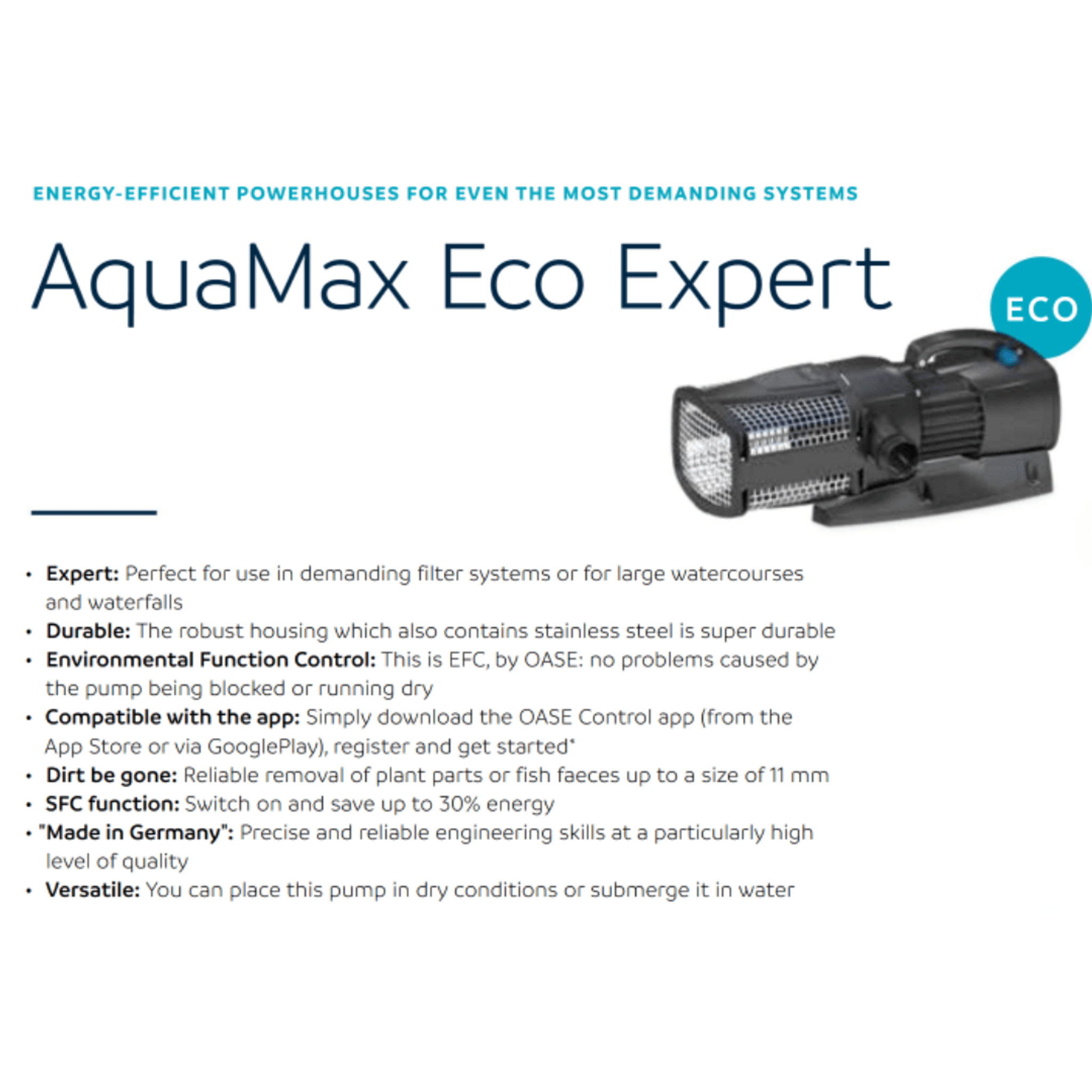

Features:

• Suitable for networks and powerhouse with low energy consumption
• Patented frost protection to –20 °C

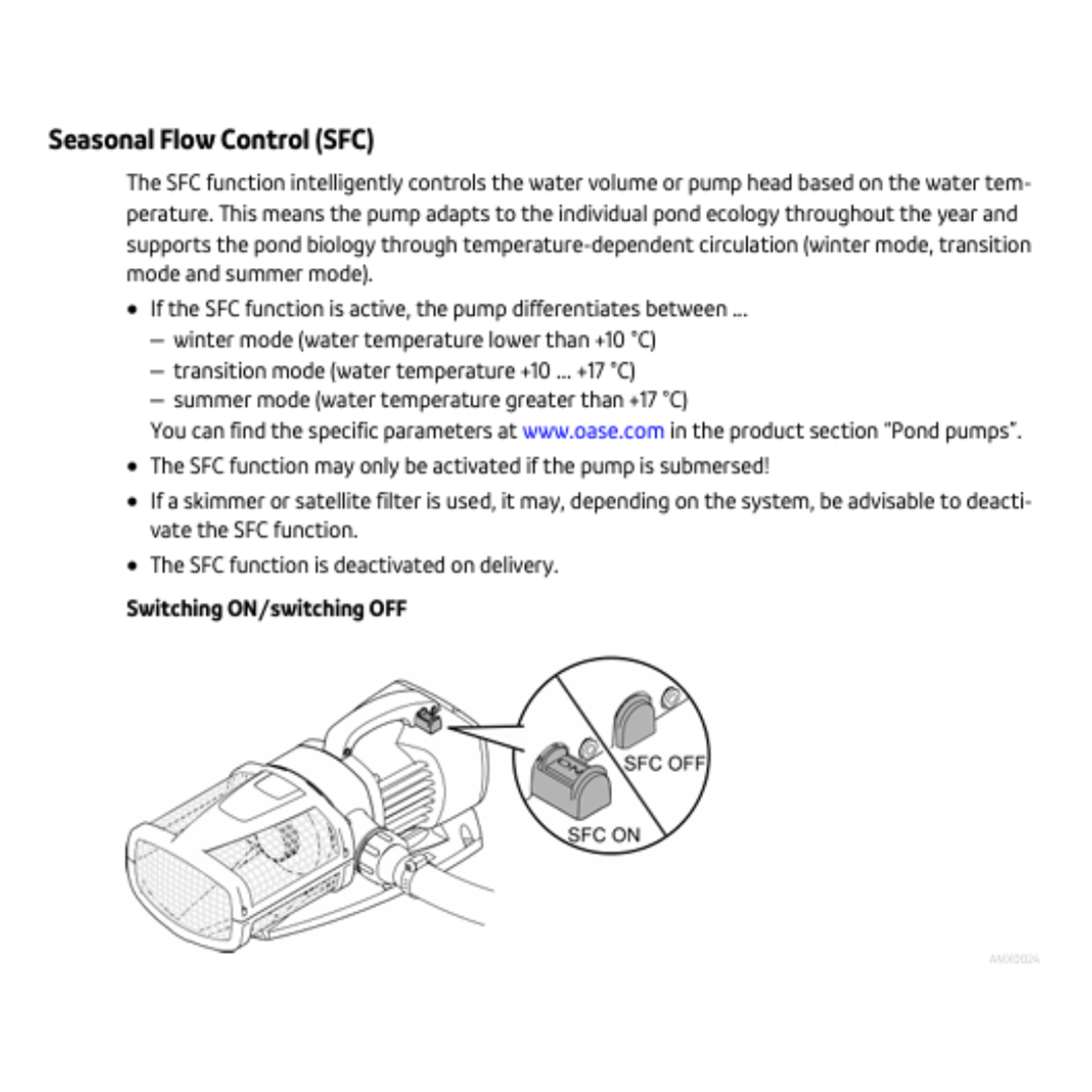

• With switchable SFC function, enabling an additional 30 % savings in energy costs, depending on the water temperature

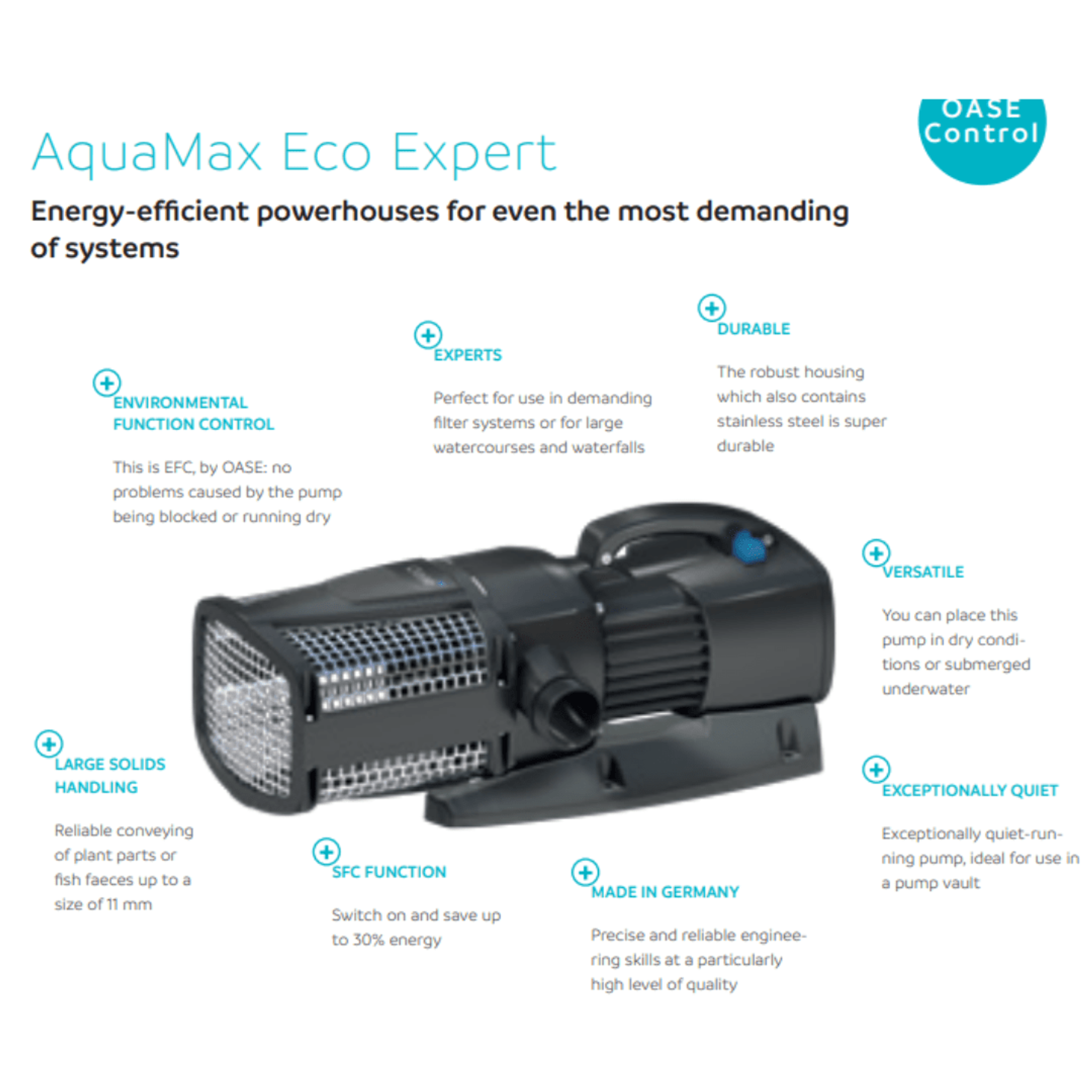

Characteristic:

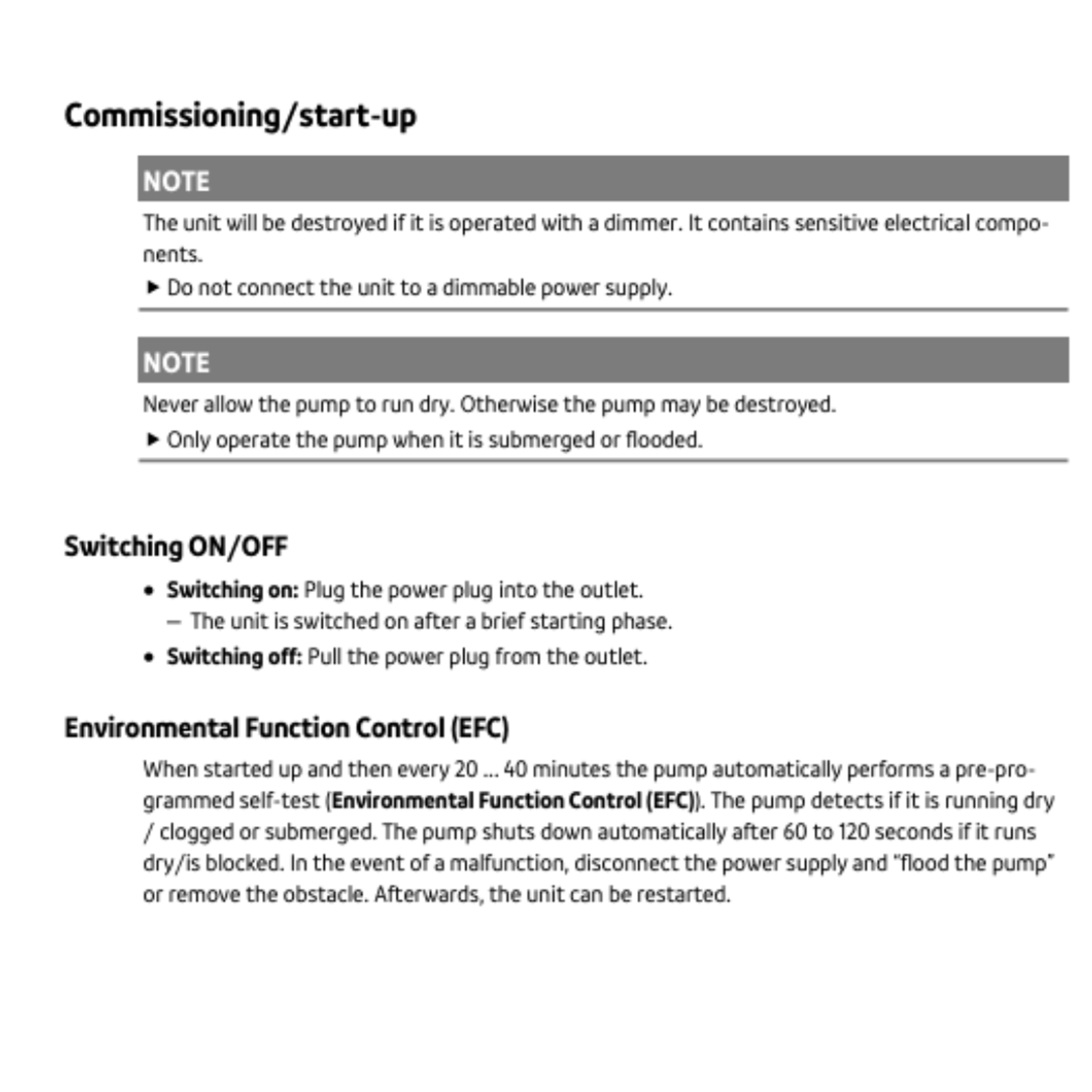

• ENVIRONMENTAL FUNCTION CONTROL: This is EFC, by OASE: no problems caused by the pump being blocked or running dry
• EXPERTS: Perfect for use in demanding filter systems or for large watercourses and waterfalls

• DURABLE: The robust housing which also contains stainless steel is very durable
  VERSATILE: You can place this pump in dry conditions or submerged underwater

• MADE IN GERMANY: Precise and reliable engineering skills at a particularly high level of quality

• SFC FUNCTION: Switch on and save up to 30% energy

• LARGE SOLIDS HANDLING: Reliable conveying of plant parts or fish faeces up to a size of 11 mm

• APP CONTROL​: Simply download the OASE Control app (App Store or Play Store), register and get started

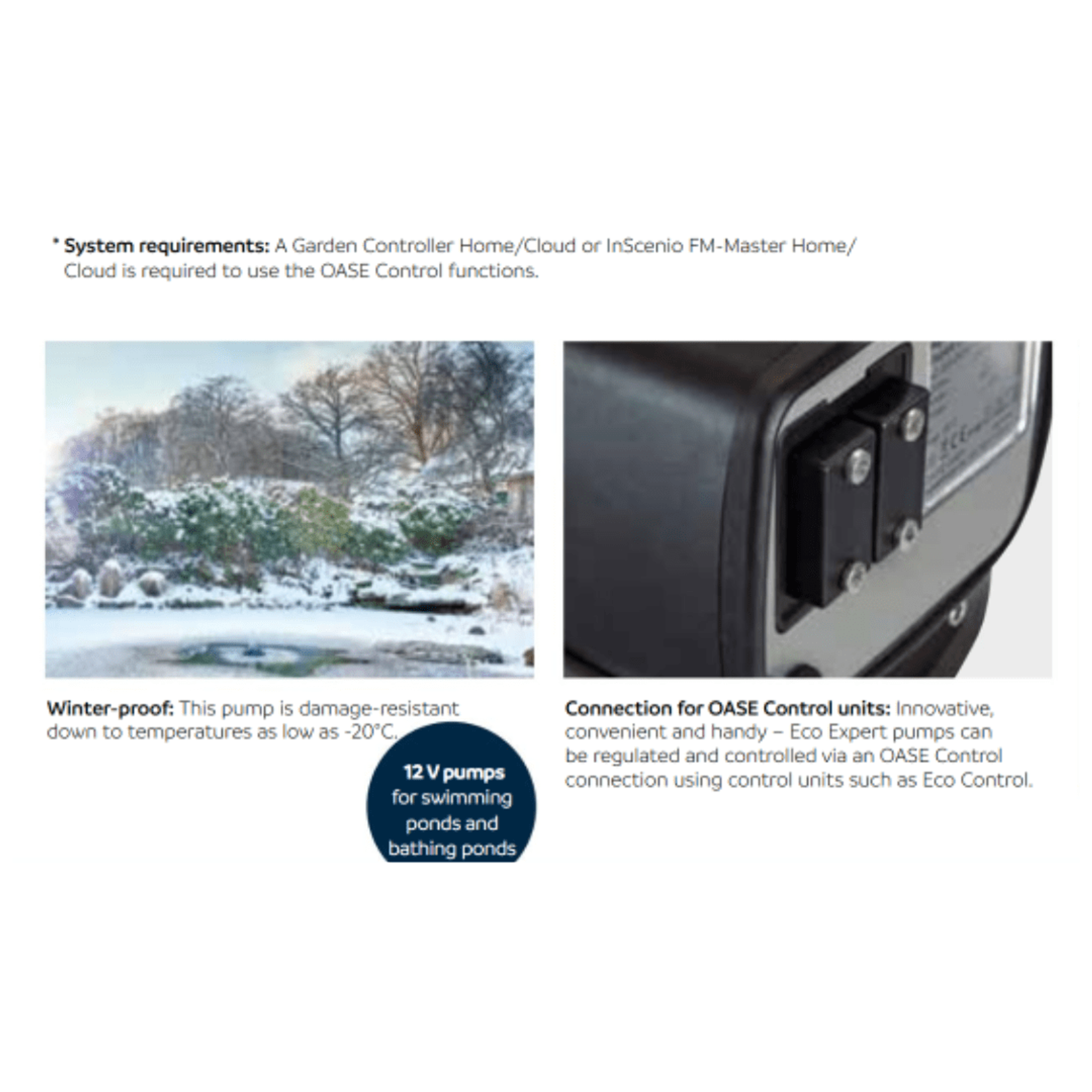

• WINTER-PROOF: This pump is damage-resistant down to temperatures as low as –20 °C

• SYSTEM REQUIREMENTS: A Garden Controller Home, Cloud or InScenio FM-Master Home, Cloud is required to use the OASE Control functions

Technical Data:

AquaMax Eco Expert 21000

Dimensions (L x W x H)    490 x 240 x 210mm
Rated voltage    220 - 240 V / 50/60 Hz
Power consumption    40 - 350w
Power cable length    10.00m
Net weight    12.00kg
Guarantee    3 years

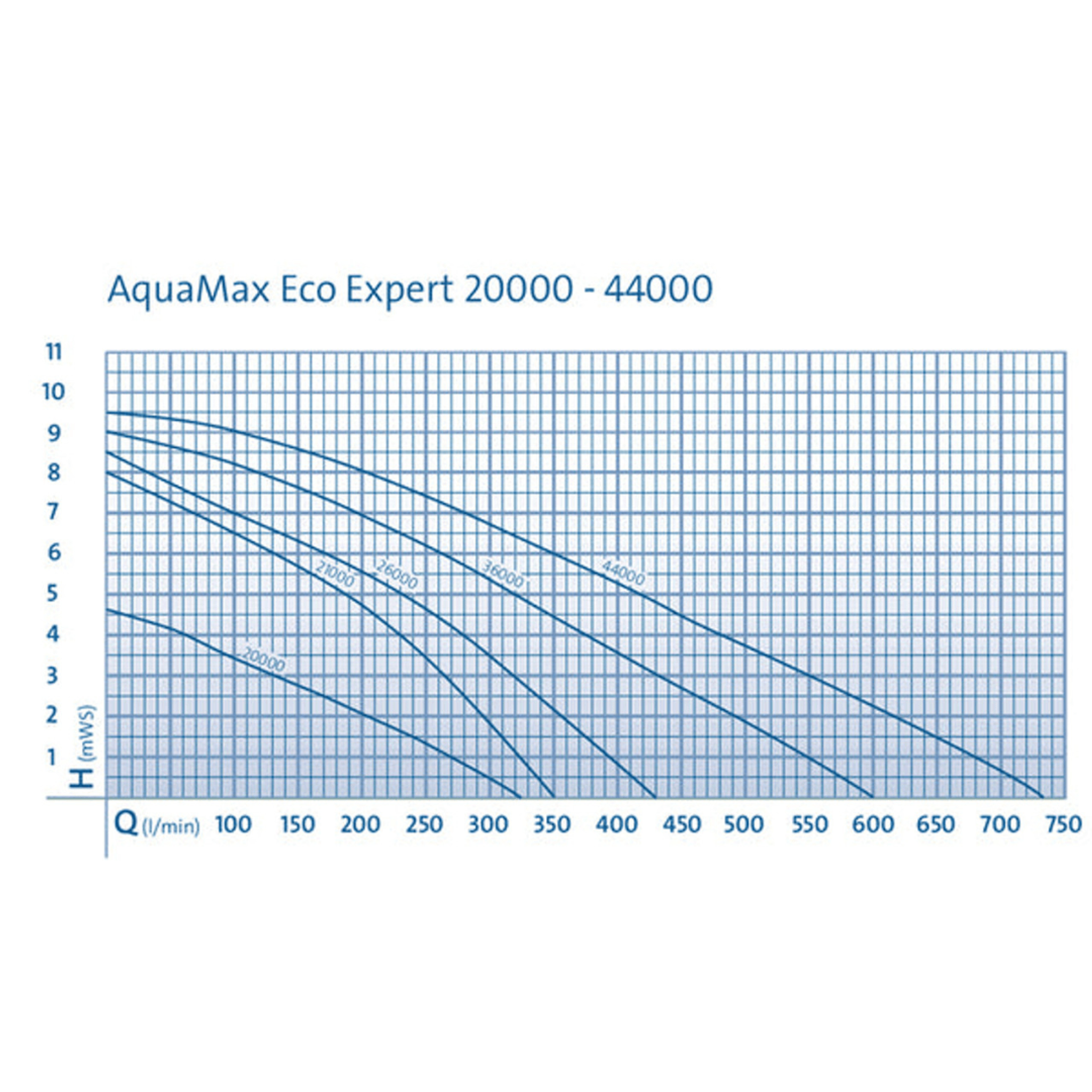

Max. flow rate    350l/min
Max. flow rate    21000l/h
Max. head height, metres    8.00m

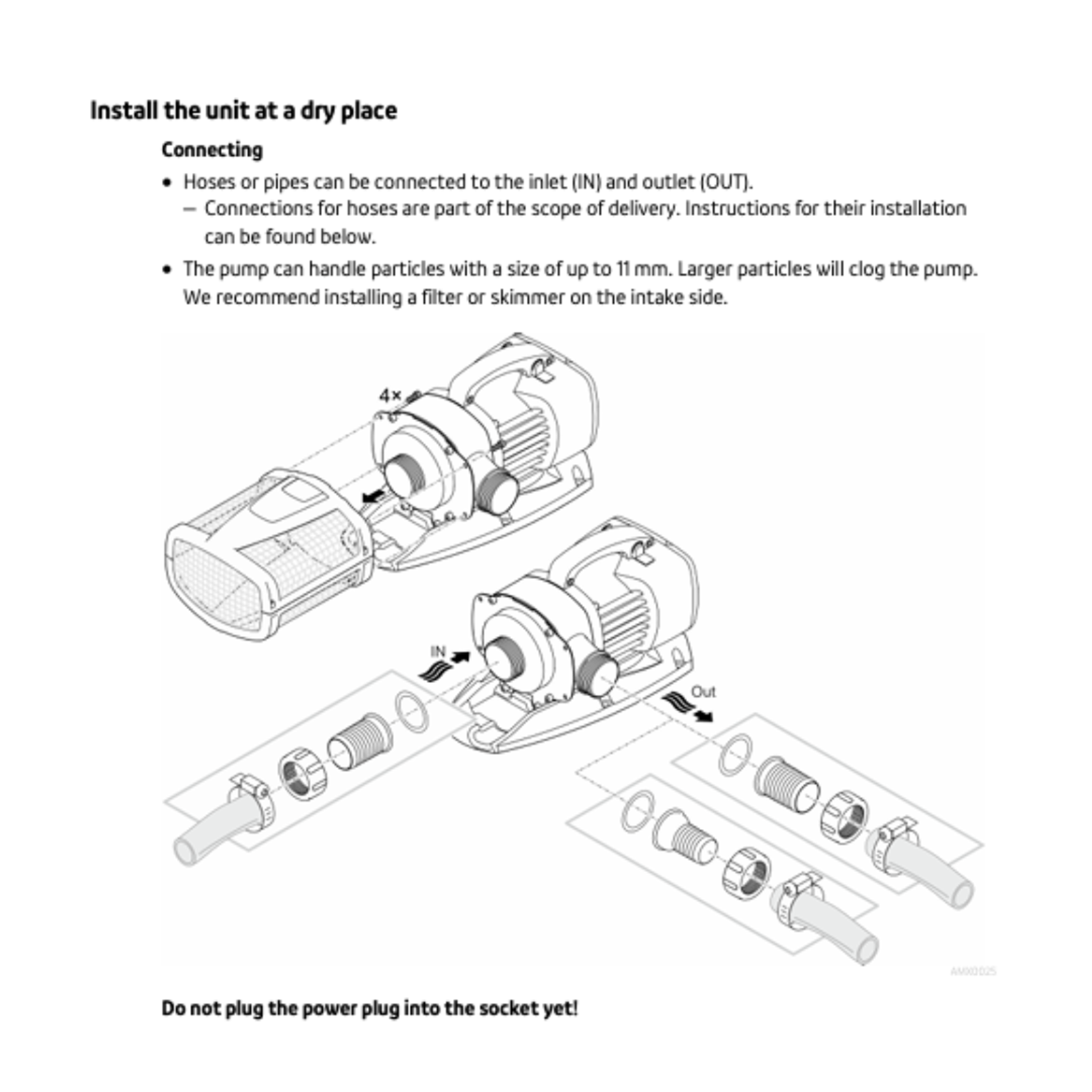

Pressure-side connection    G 2
Suction-side connection    G 2
Hose connection    38 / 50mm
Hose connection    1 ½", 2"
Filter intake surface    1060cm2
Max. coarse debris displacement    11mm
OASE Control connection    Yes
Electronic adjustment    Yes

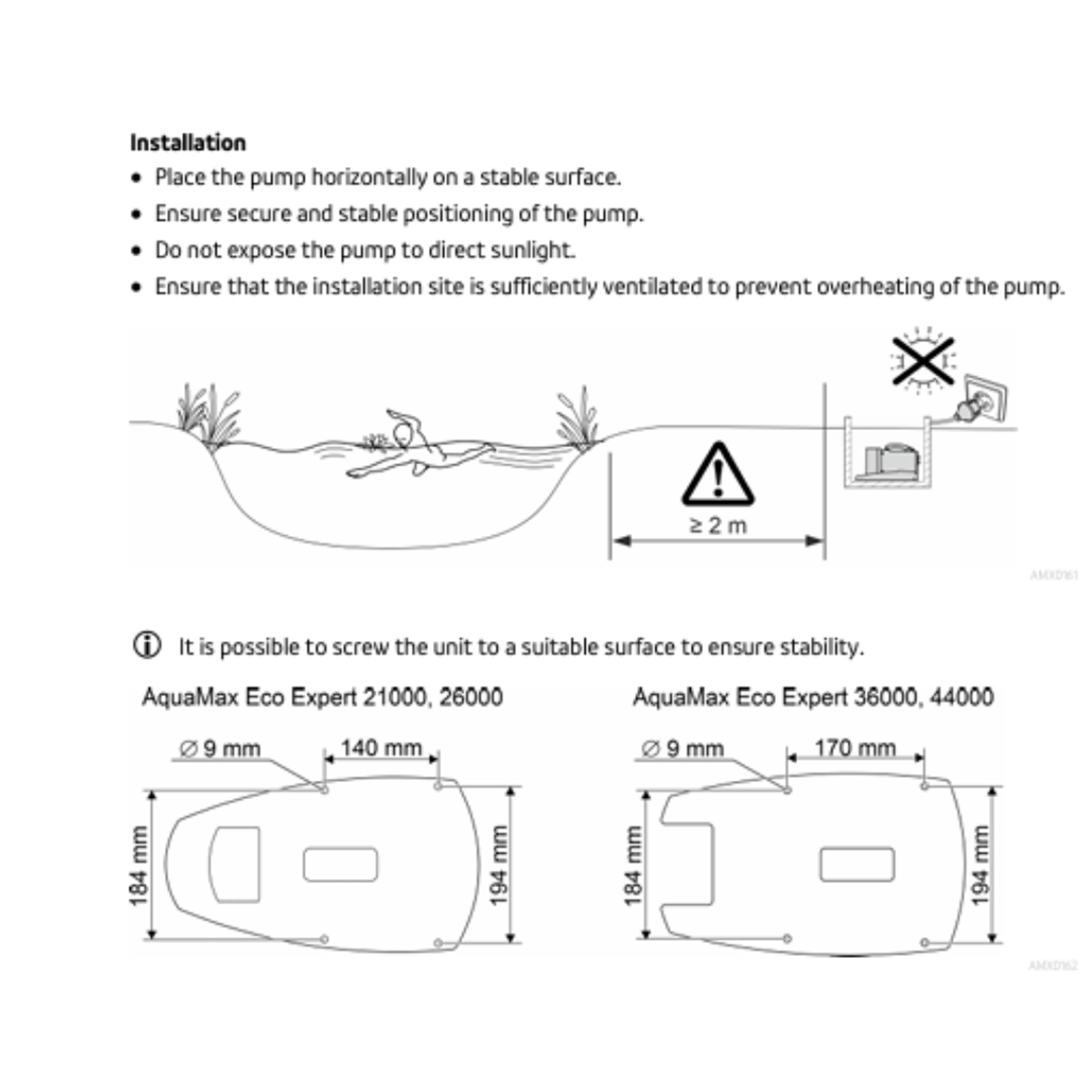

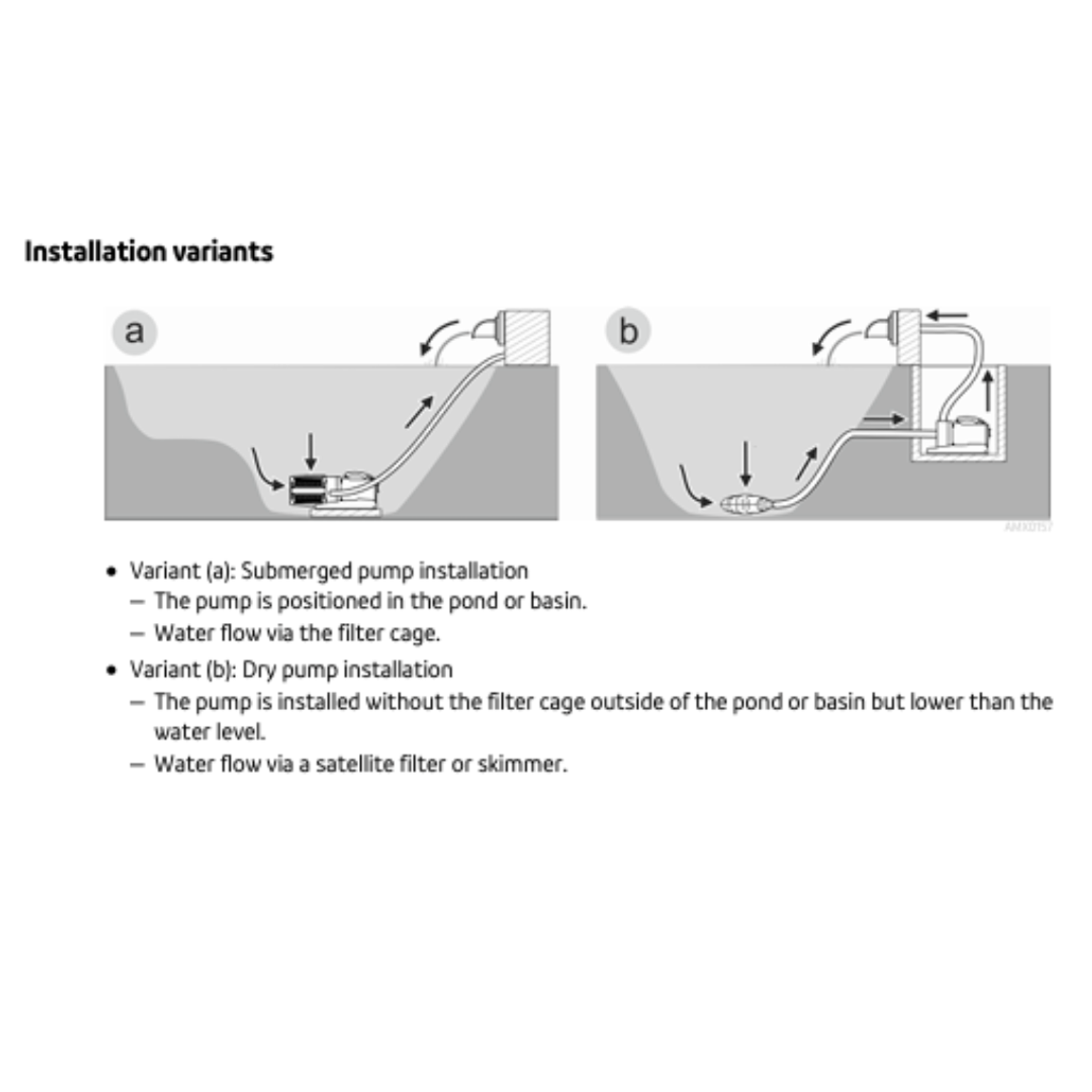

Setup type    Can be set up underwater & dry installed



AquaMax Eco Expert 26000

Dimensions (L x W x H)    490 x 240 x 210mm
Rated voltage    220 - 240 V / 50/60 Hz
Power consumption    60 - 440w
Power cable length    10.00mm
Net weight    12.00kg
Guarantee    3 years
Max. flow rate    433l/min
Max. flow rate    26000l/h
Max. head height, metres    8.50m
Pressure-side connection    G 2
Suction-side connection    G 2
Hose connection    38 / 50mm
Hose connection    1 ½", 2"
Filter intake surface    1060cm2
Max. coarse debris displacement    11mm
OASE Control connection    Yes
Electronic adjustment    Yes
Setup type    Can be set up underwater & dry installed



AquaMax Eco Expert 36000

Dimensions (L x W x H)    540 x 250 x 220mm
Rated voltage    220 - 240 V / 50/60 Hz
Power consumption    90 - 540W
Power cable length    10.00m
Net weight    14.90kg
Guarantee    3 years
Max. flow rate    600 l/min
Max. flow rate    36000 l/h
Max. head height, metres    9.00m
Pressure-side connection    G 2
Suction-side connection    G 2 ½
Hose connection    38 / 50mm
Hose connection    1 ½", 2"
Filter intake surface    1120cm2
Max. coarse debris displacement    11mm
OASE Control connection    Yes
Electronic adjustment    Yes
Setup type    Can be set up underwater & dry installed



AquaMax Eco Expert 44000

Dimensions (L x W x H)    540 x 250 x 220mm
Rated voltage    220 - 240 V / 50/60 Hz
Power consumption    140 - 700W
Power cable length    10.00m
Net weight    14.90kg
Guarantee    3 years
Max. flow rate    733 l/min
Max. flow rate    44000 l/h
Max. head height, metres    9.50m
Pressure-side connection    G 2
Suction-side connection    G 2 ½
Hose connection    38 / 50mm
Hose connection    1 ½", 2"
Filter intake surface    1120cm2
Max. coarse debris displacement    11mm
OASE Control connection    Yes
Electronic adjustment    Yes
Setup type    Can be set up underwater & dry installed



***Please check with us for even larger model!
