Product Details
- Multi function intelligent control layout, can adjust flow and power.
- The water pump uses the latest three-phase power with brushless and sensorless control technology, energy saving up to 50%.
- Low-voltage 24V, safe and converse electricity.
- Using closed impeller design can be economically efficient to improve lift and output.
- Super silence, can be used both in fresh and sea water.
- Use ceramic shaft, wear resistance, no rust.
- Long service life, no copper element.
- The outlet realize muitistage over, suitable for a variety of pipe diameter connection.
- Separation of electric drive, more safe and stable.
- The locked-rotor protection function(immediately cut off power after impeller jammed.)
| Model | JDP-3500 | JDP-6000 | JDP-10000 |
| Rated Voltage | DC 24V | DC 24V | DC 24V |
| Rated Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Rated Power | 10W-35W | 13W-60W | 20W-100W |
| Maximum Lift | 1.7m | 1.6-5.0m | 5.8m |
| Maximum Flow | 2300-3500L/h | 3000-6000L/h | 6000-10000L/h |
| Outlet (mm) | 20, 25, 32 | 20, 25, 32 | 20, 25, 32, 38, 50 |
| Weigtht | 1.1kg | 1.9kg | 2.9kg |
| Dimension | 155x72x97mm | 175x83x113mm | 195x95x125mm |

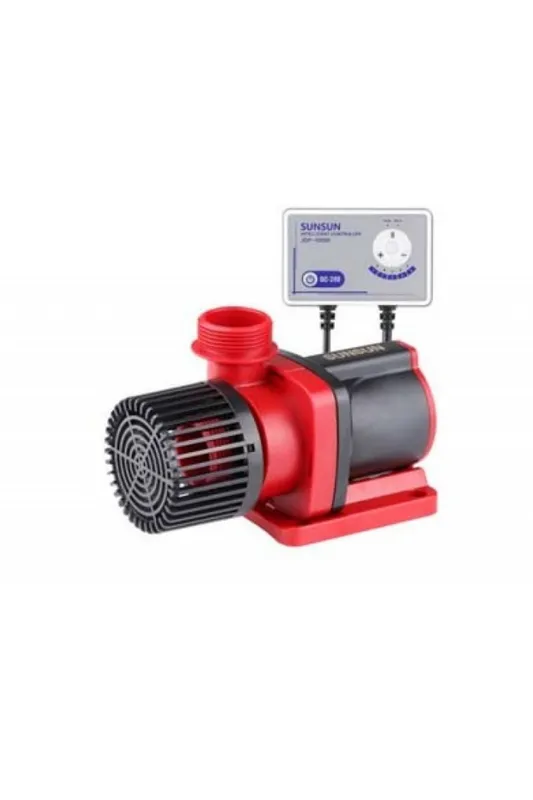

SUNSUN JDP-Series Pump
Product Options
JDP-10000
JDP-6000
JDP-3500
