Linear Air Pumps
DB15

The diaphragm pump is extremely silent and easy to install, lightweight and compact with quick fit anti vibration rubber feet mounts requiring no tools.

Performance ranges are from 10~70LPM(0.35~2.47CFM) free flow to 166~392mbar(2.41~5.68psi) Maximum Pressure, Vacuum levels to 167-360mbar(2.41~5.21psi).
Applications include air mattresses, blood circulation, medical nebulizers, electric message and medical air chair, oxygen supply, solder removal, air sampling, fog machines, fragrance diffusion...etc..

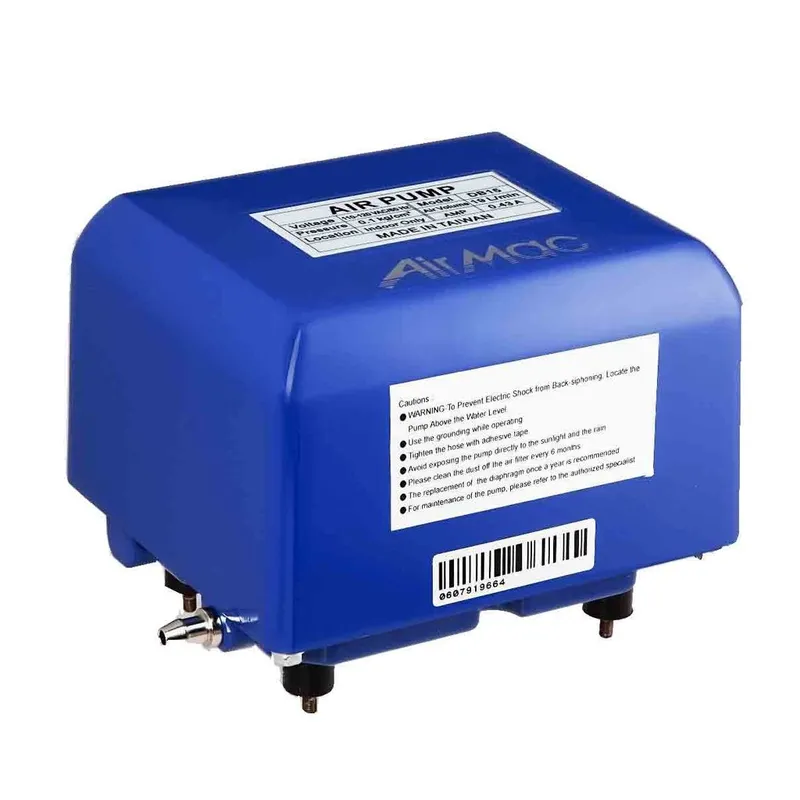

LINEAR AIR PUMP DB15
Model No. Voltage(VAC) Frequency(HZ) Rated Pressure Airflow AMP(A) WATT(W)
kg / cm2 psi LPM cfm
DB15 220 ~ 240 50 0.1 1.42 17 0.60 0.18 20
