OASE AquaMax Eco Classic (2500E-17500l/h)(10m cable) (energy saving)

OASE AquaMax Eco Classic

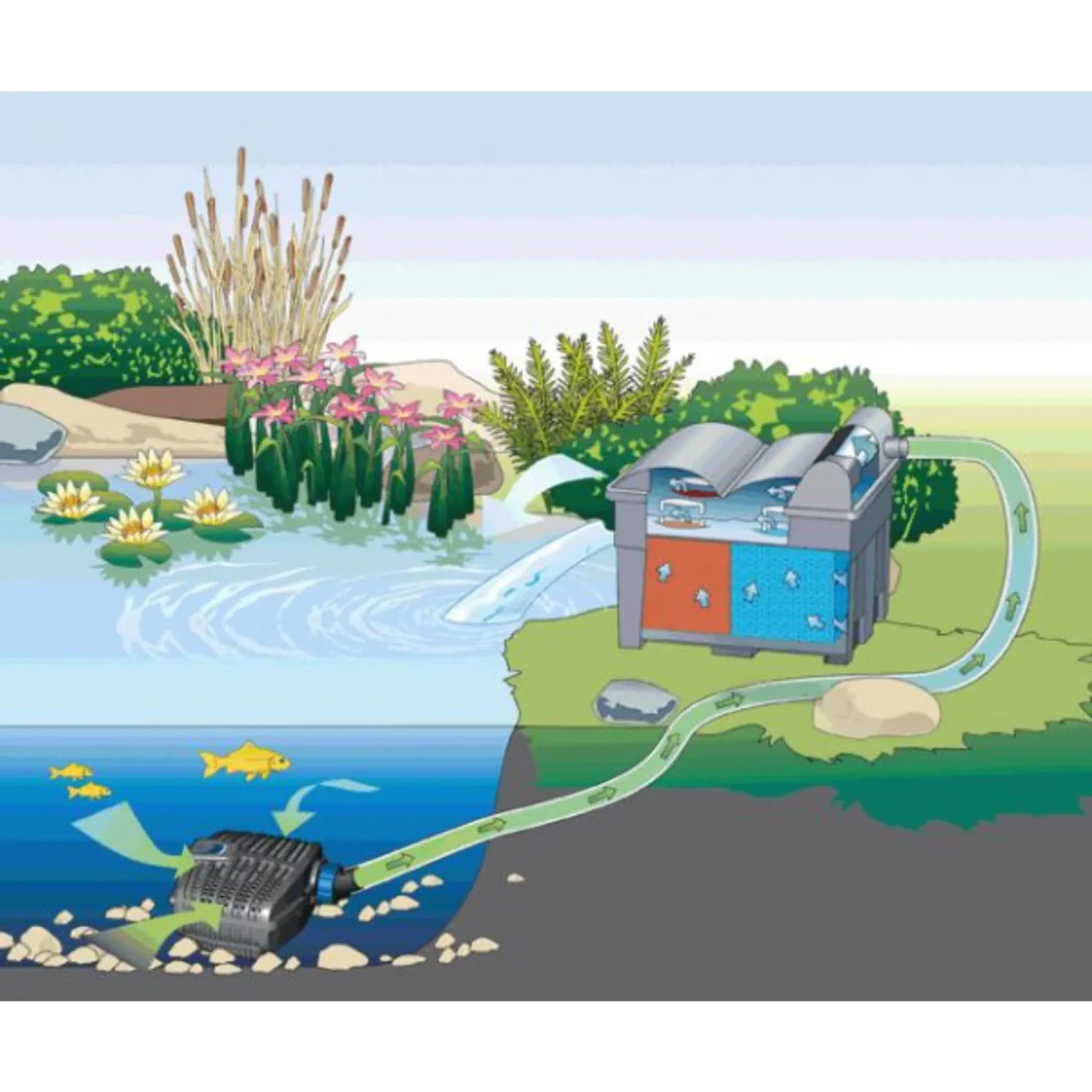

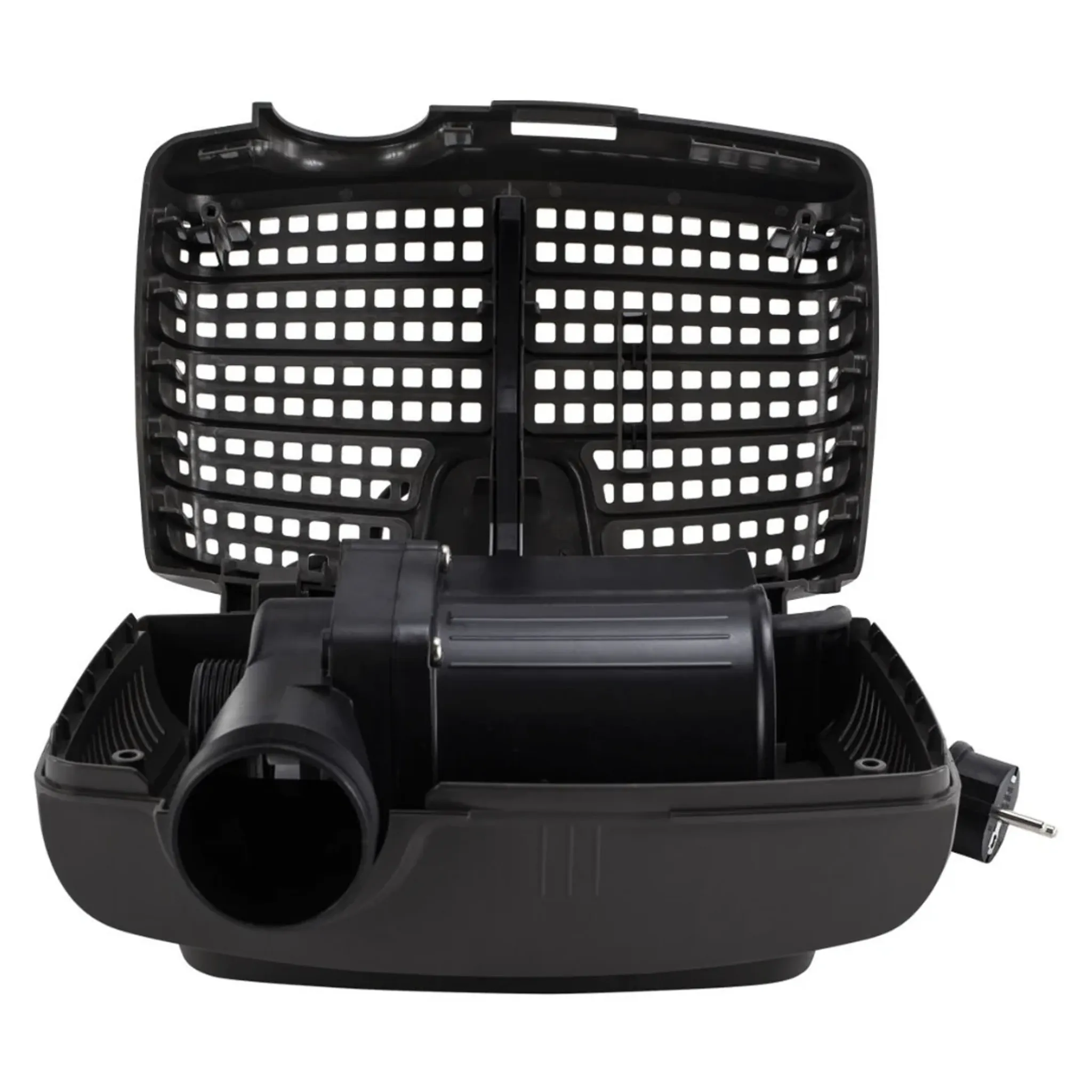

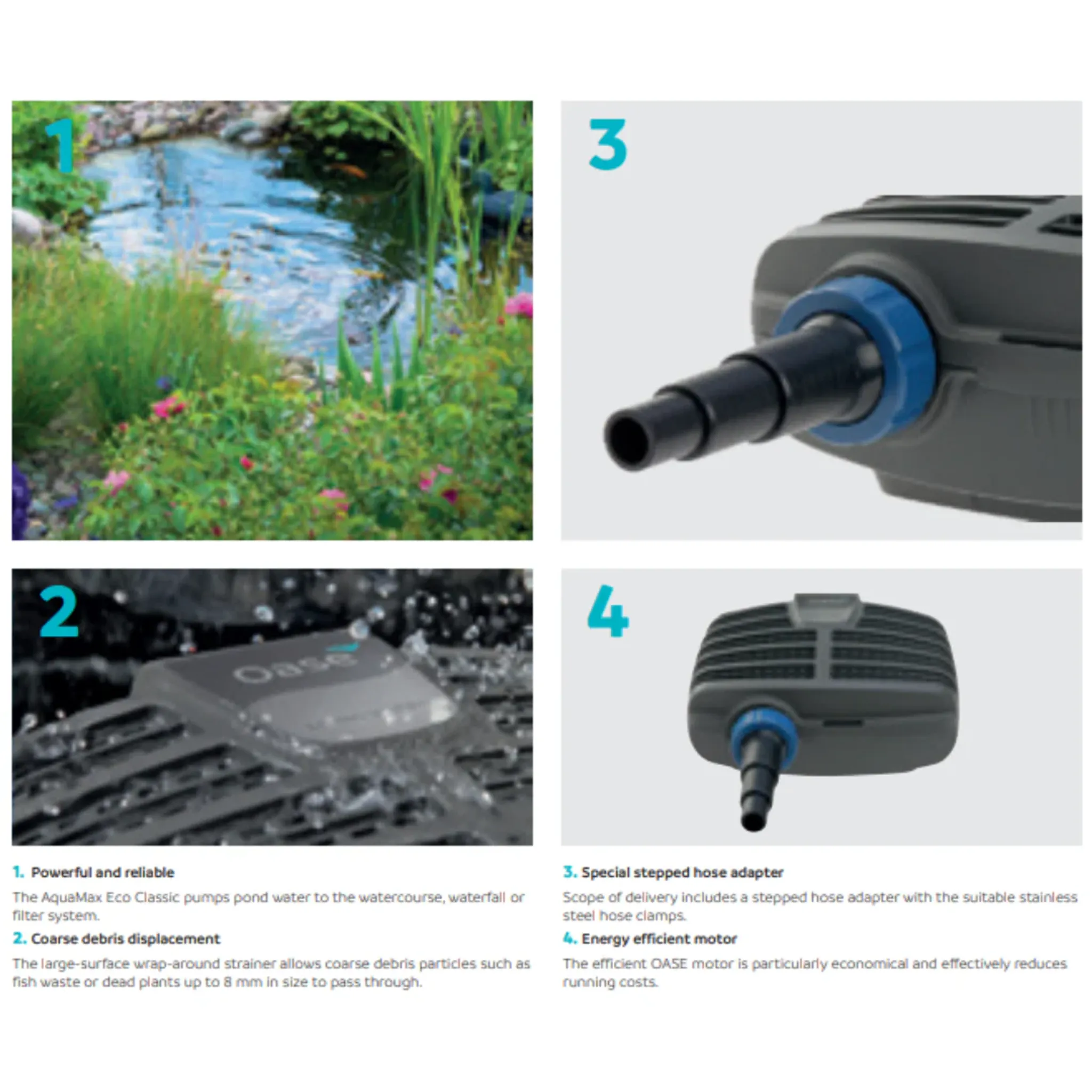

The entry-level class among the filter and watercourse pumps: AquaMax Eco pumps the pond water to the watercourse, waterfall or filter system powerfully and reliably. The large-surface wrap-around filter allows coarse dirt particles such as fish waste or dead plant parts up to 8 mm in size to pass through. The pumps switch off automatically in the event of dry running or blockage, preventing damage to the unit.

Features:

• Energy-efficient motor can save up 25% energy compared to traditional pumps.
• Hose outlet has ball joint for easy hose redirection.
• Stepped hose tail for connecting 3/4" (19mm) to 1 1/2" (38mm) hose sizes
• Suitable for use on swim ponds and bathing ponds (used in an exterior pump chamber)
• Environmental Function Control (EFC by Oase) protects against dry running and blocking

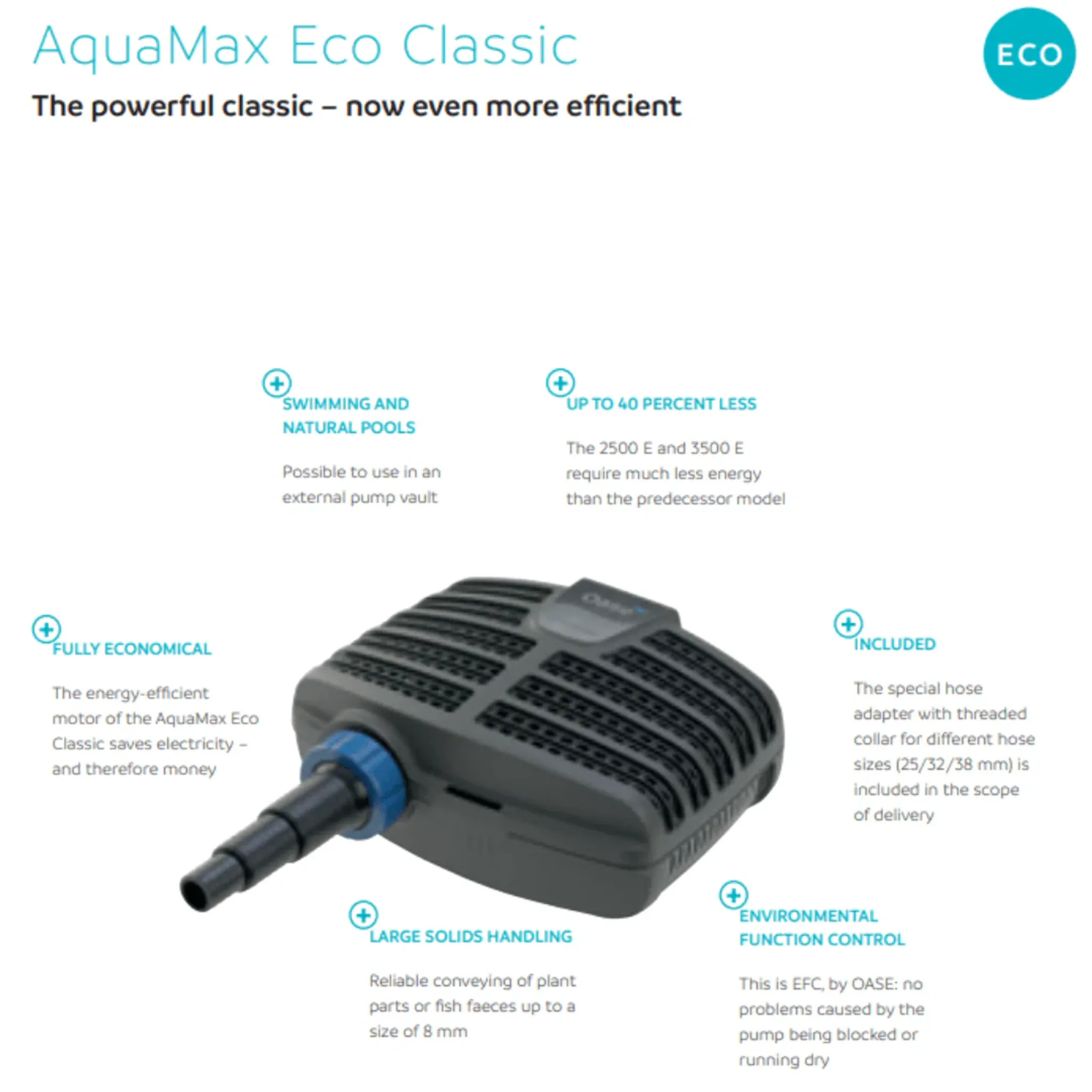

Characteristic:

• FULLY ECONOMICAL: The energy-efficient motor of the AquaMax Eco Classic saves electricity – and therefore money

• SWIMMING AND NATURAL POOLS: Possible to use in an external pump vault

• UP TO 40 PERCENT LESS: The 2500 E and 3500 E require much less energy than the predecessor model

• INCLUDED: The special hose adapter with threaded collar for different hose sizes (25/32/38 mm) is included in the scope of delivery

• ENVIRONMENTAL FUNCTION CONTROL: This is EFC, by OASE: no problems caused by the pump being blocked or running dry

• LARGE SOLIDS HANDLING: Reliable conveying of plant parts or fish faeces up to a size of 8 mm

TECHNICAL DATA (2500E)

Dimensions (L x W x H)    mm    280 x 230 x 140
Rated voltage        220 - 240 V / 50 Hz
Power consumption    W    23
Power cable length    m    10.00
Net weight    kg    2.80
Guarantee   Years    3
Max. flow rate    l/min    43
Max. flow rate    l/h    2600
Max. head height, metres    m    2.20
Pressure-side connection        G 1
Suction-side connection        G 1
Hose connection    mm    25 / 32 / 38
Hose connection        1", 1 ¼", 1 ½"
Filter intake surface    cm2    810
Max. coarse debris displacement    mm    8
Electronic adjustment        No
Setup type        Can be set up underwater & dry installed

TECHNICAL DATA (3500E)

Dimensions (L x W x H)    mm    280 x 230 x 140
Rated voltage        220 - 240 V / 50 Hz
Power consumption    W    35
Power cable length    m    10.00
Net weight    kg    3.00
Guarantee    Years    3
Max. flow rate    l/min    58
Max. flow rate    l/h    3500
Max. head height, metres    m    2.60
Pressure-side connection        G 1
Suction-side connection        G 1
Hose connection    mm    25 / 32 / 38
Hose connection        1", 1 ¼", 1 ½"
Filter intake surface    cm2    810
Max. coarse debris displacement    mm    8
Electronic adjustment        No
Setup type        Can be set up underwater & dry installed

TECHNICAL DATA (5500)

Dimensions (L x W x H)    280 x 230 x 140mm
Rated voltage    220 - 240 V / 50 Hz
Power consumption    60w
Power cable length    10.00m
Net weight    3.20kg
Guarantee    3 years
Max. flow rate    88l/min
Max. flow rate    5300l/h
Max. head height, metres    2.80m
Pressure-side connection    G 1 ½
Suction-side connection    G 1 ½
Hose connection    25 / 32 / 38mm
Hose connection    1", 1 ¼", 1 ½"
Filter intake surface    810cm2
Max. coarse debris displacement    8mm
Electronic adjustment    No
Setup type    Can be set up underwater & dry installed

TECHNICAL DATA (8500)

Dimensions (L x W x H)    280 x 230 x 140mm
Rated voltage    220 - 240 V / 50 Hz
Power consumption    80w
Power cable length    10.00m
Net weight    4.40kg
Guarantee    3 years
Max. flow rate    138l/min
Max. flow rate    8300l/h
Max. head height, metres    3.20m
Pressure-side connection    38mm
Pressure-side connection    1 ½"
Suction-side connection    38mm
Suction-side connection    1 ½"
Hose connection    25 / 32 / 38mm
Hose connection    1", 1 ¼", 1 ½"
Filter intake surface    810cm²
Max. coarse debris displacement    8mm
Electronic adjustment    No
Setup type    Can be set up underwater & dry installed
