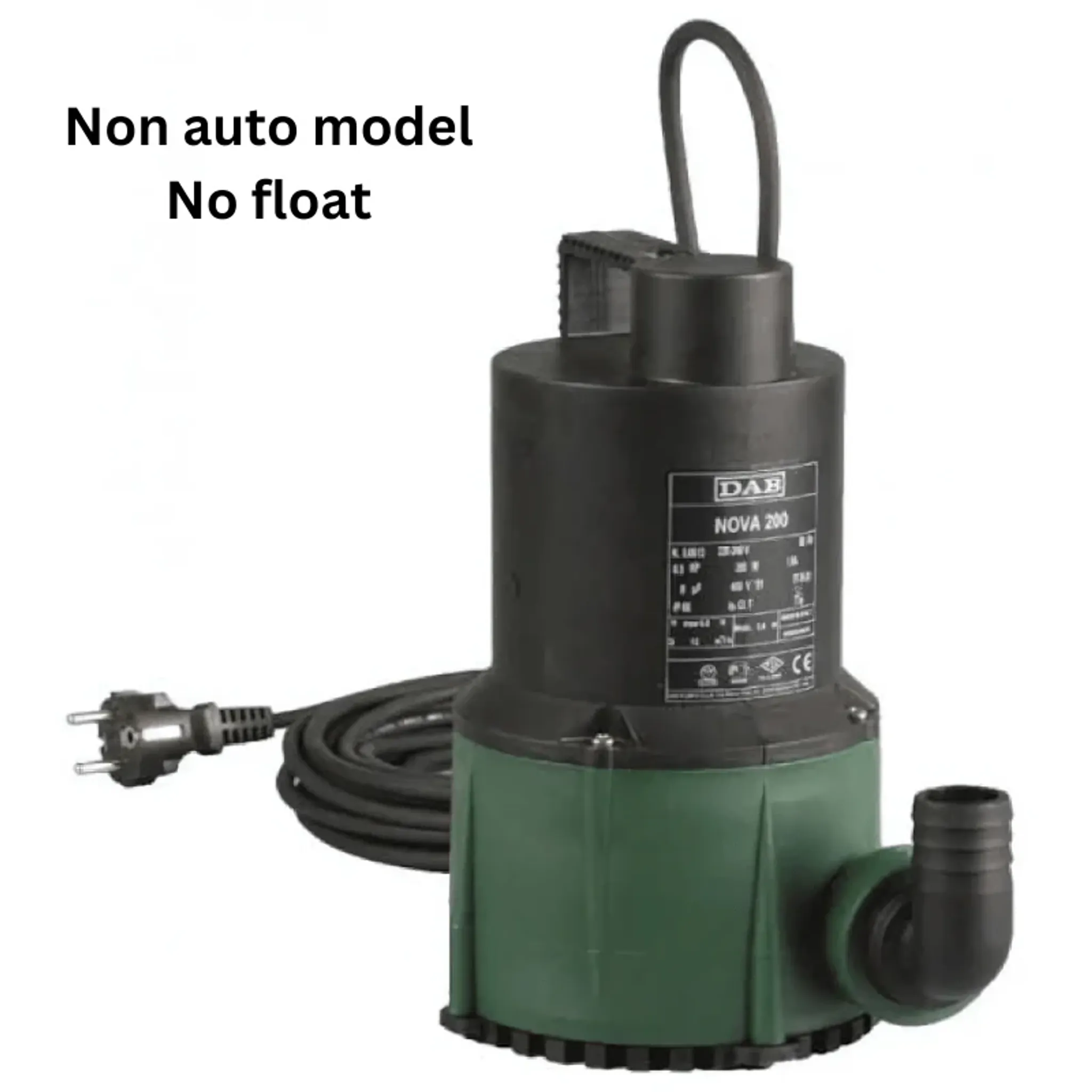

DAB NOVA 200 Submersible Pump (Non-Auto w/o Float) 5m cable

Click to enlarge

Unless otherwise stated, product might differ from image as image is representative of species and not of actual product

Pumps/Other Pumps

DAB NOVA 200 Submersible Pump (Non-Auto w/o Float) 5m cable

Name: DAB NOVA 200 Submersible Pump (Non-Auto w/o Float) 5m cable
SKU: 26450
Price: 200.00 SGD
Availability: InStock

SGD 200.00

Delivery Information

Delivery takes 3 to 7 working days normally. Delivery fees will be shown upon checkout. Certain areas may require additional charges, and a top-up via PayNow will be needed. This includes Central Business District, Offices, Airport, Hospitals, Tertiary campuses, PSA terminals, Cargo Complexes, cargo ports, shipyards, Government buildings, secured compounds, SAF campus, Marina Bay Sands, Robinson, Marina Square,Orchard, Bras Basah, Sentosa, Tuas, Jurong Island, etc. Our customer service representatives will reach out to you if necessary.

Product Variations

Quantity

Stock: 10

Product Details

WYSIWYG

Representative Photo Only

Product Description

Nova 200 by DAB are submersible pumps for drainage (also rainwater) in residential building service. The pumps have been redesigned on the occasion of the forty years of marketing, making them even more reliable, resistant and ergonomic to use. They can also be used for emptying tanks or cisterns.

Nova 200 are suitable for fixed or portable installations and they are available in the automatic version with the integrated float switch or in the manual version without the float. The pumps are suitable for drainage of flooded basements, cellars and garages or to prevent flooding when installed in rainwater collector wells, which can also be used as a portable pump in emergency situations to drain water from flooded premises.

The pump body, the impeller and the suction grille are in techno polymer, the motor shaft is in stainless steel. Thermal protection incorporated in all single-phase versions. they can work in dry run for up to a minute. 10 mm free passage. In compliance with the European standard EN 60335-2-41 in case of external use the 10 meter power cable is mandatory.

Submersible pump for water features, drainage of clean water, suitable for domestic applications such as collection from wells, small floods of cellars and in gardening.

Features

Max water Output: 12000 Liters/Hour
All components are in rust-proof techno polymer
Built-in thermal and current overload protection
Minimum suction height from 7 mm
Compact dimensions

Advantages

No rusting over time
The built-in thermal and current overload protection protects the pump in the event of malfunctions
Collection possible even with very low water levels
Compact and rugged construction

Benefits

Product resistance and durability
Maximum adaptability to all domestic requirements
Usable also in very small wells

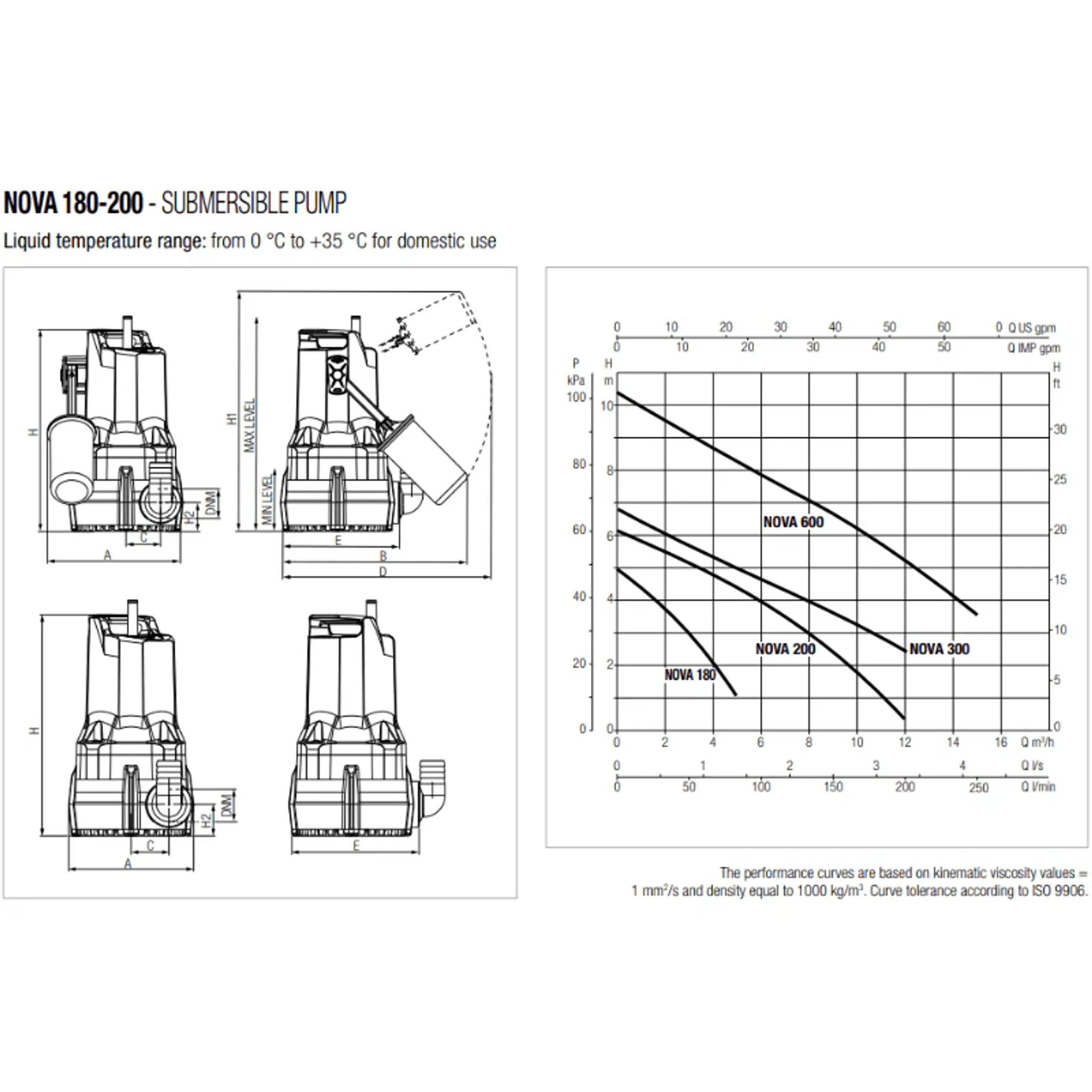

Capacity of DAB NOVA-200 MNA SV in Liters at Various Heads

HEAD (mt)	0	1.4	2.6	3.2	4.6	5.9	6.6
Liters Per Hour	12000	12000	9000	7500	4500	2400	0

Manufacturer	DAB PUMPS S.p.A, Italy
Country of made	Italy
Size	Height – 25.3cm, Bottom width – 14.8cm
Weight	4.8kg
Material	Techno polymer
Motor protection	IP68
Standard voltage	single-phase 220-240 V/50 Hz
Max Kw	0.35
HP & A	0.3 & 1.5
Cable length	5 Mt
Max immersion depth	7 meters
Max dry running time	1 minute
Installation	fixed or portable in a vertical position
